` element designed for **fluid and GPU-accelerated effects**.

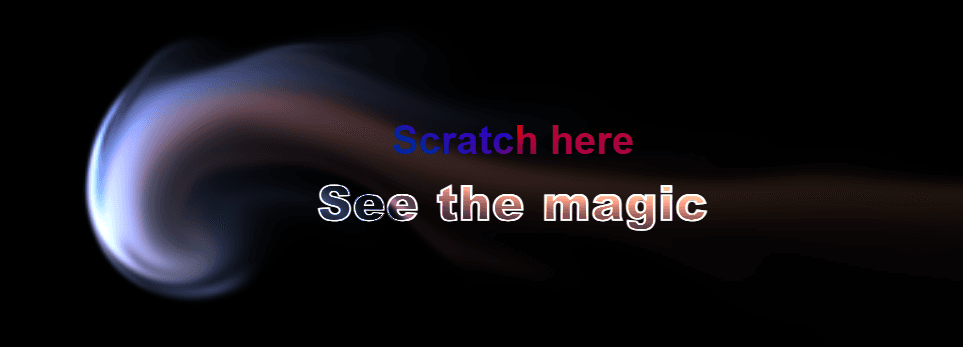

Users are encouraged to *“scratch”* the canvas area to reveal dynamic visuals, creating a magical and engaging interaction.
Additionally, a modern light/dark theme switcher is implemented using radio inputs and SVG icons, allowing seamless theme transitions with a visually rich UI.
Key highlights include:
WebGPU-ready fluid canvas setup
Minimal and semantic HTML structure
Accessible theme switcher with SVG icons
Scalable layout for creative hero sections
🧱 HTML Structure
The HTML layout is divided into three main sections :
Hero container with titles and canvasCanvas element for fluid interactionTheme switcher UI for light/dark mode
🎨 CSS Overview
The CSS (linked via style.css) is responsible for:
Full-screen hero layout
Typography alignment and spacing
Canvas positioning
Animated and stylized theme switcher
SVG filter effects for smooth UI transitions
Key styling concepts include:
Centered canvas interaction area
Layered text above the canvas
Gooey and blur effects for the switcher UI
CSS variables for light/dark theme colors
⚠️ The heavy SVG filter data is intentionally handled in CSS/SVG to offload complexity from JavaScript.
🎨 CSS Code
Copy html ,
body {
overflow : clip;
}
:root {
--c-glass: #bbbbbc ;
--c-light: #fff ;
--c-dark: #000 ;
--c- content : #224 ;
--c-action: #0052f5 ;
--c-bg: #fff ;
--glass-reflex-dark: 1 ;
--glass-reflex-light: 1 ;
--saturation: 150% ;
font-size : 20px ;
font-family : sans-serif;
font -optical-sizing: auto;
transition : background 400ms cubic-bezier ( 1 , 0 , 0.4 , 1 ),
color 400ms cubic-bezier ( 1 , 0 , 0.4 , 1 );
}
body {
margin : 0 ;
position : absolute;
width : 100% ;
height : 100% ;
}
#container {
margin : 0 ;
padding : 0 ;
display : flex;
flex-direction : column;
justify-content : center;
align-items : center;
width : 100% ;
height : 100% ;
background : var (--c-bg);
color : var (--c-content);
}
.a-title {
position : absolute;
color : transparent;
-webkit- background-clip : text;
-webkit-text-fill- color : transparent;
background-image : conic-gradient ( #ed0101 , blue);
pointer-events : none;
mix-blend-mode: difference;
filter : drop-shadow ( 2px 4px 6px black);
}
.a-second-title {
position : absolute;
margin-top : 25vh ;
pointer-events : none;
-webkit-text-stroke: 1.3px white;
letter-spacing : 1.125px ;
font-size : -webkit-xxx-large;
font-weight : 900 ;
mix-blend-mode: color-burn;
:has ( input [value= "dark" ] :checked ) & {
mix-blend-mode: color-dodge;
}
}
canvas {
width : 100% ;
height : 100% ;
background : var (--c-bg);
}
/*glass switcher*/
:has ( input [value= "dark" ] :checked ) {
--c-glass: #bbbbbc ;
--c-light: #fff ;
--c-dark: #000 ;
--c- content : #e1e1e1 ;
--c-action: #ffdc03 ;
--c-bg: #000 ;
--glass-reflex-dark: 2 ;
--glass-reflex-light: 0.3 ;
--saturation: 150% ;
}
.switcher {
position : fixed;
z-index : 2 ;
top : 40px ;
left : 50% ;
translate: - 50% ;
display : flex;
align-items : center;
gap: 8px ;
width : 168px ; /* Adjusted for two options */
max-width : 168px ; /* Adjusted for two options */
height : 70px ;
box-sizing : border-box;
padding : 8px 12px 10px ;
margin : 0 auto;
border : none;
border-radius : 99em ;
font-size : var (--fz);
background-color : color-mix (in srgb, var (--c-glass) 12% , transparent);
backdrop- filter : blur ( 8px ) url ( #switcher ) saturate ( var (--saturation));
-webkit-backdrop- filter : blur ( 8px ) saturate ( var (--saturation));
box-shadow : inset 0 0 0 1px
color-mix (
in srgb,
var (--c-light) calc ( var (--glass-reflex-light) * 10% ),
transparent
),
inset 1.8px 3px 0px - 2px color-mix (in srgb, var (--c-light)
calc ( var (--glass-reflex-light) * 90% ), transparent),
inset - 2px - 2px 0px - 2px color-mix (in srgb, var (--c-light)
calc ( var (--glass-reflex-light) * 80% ), transparent),
inset - 3px - 8px 1px - 6px color-mix (in srgb, var (--c-light)
calc ( var (--glass-reflex-light) * 60% ), transparent),
inset - 0.3px - 1px 4px 0px
color-mix (
in srgb,
var (--c-dark) calc ( var (--glass-reflex-dark) * 12% ),
transparent
),
inset - 1.5px 2.5px 0px - 2px
color-mix (
in srgb,
var (--c-dark) calc ( var (--glass-reflex-dark) * 20% ),
transparent
),
inset 0px 3px 4px - 2px color-mix (in srgb, var (--c-dark)
calc ( var (--glass-reflex-dark) * 20% ), transparent),
inset 2px - 6.5px 1px - 4px
color-mix (
in srgb,
var (--c-dark) calc ( var (--glass-reflex-dark) * 10% ),
transparent
),
0px 1px 5px 0px
color-mix (
in srgb,
var (--c-dark) calc ( var (--glass-reflex-dark) * 10% ),
transparent
),
0px 6px 16px 0px
color-mix (
in srgb,
var (--c-dark) calc ( var (--glass-reflex-dark) * 8% ),
transparent
);
transition : background-color 400ms cubic-bezier ( 1 , 0 , 0.4 , 1 ),
box-shadow 400ms cubic-bezier ( 1 , 0 , 0.4 , 1 );
backdrop- filter : blur ( 5px );
}
.switcher__legend {
position : absolute;
width : 1px ;
height : 1px ;
margin : - 1px ;
border : 0 ;
padding : 0 ;
white-space : nowrap;
clip-path : inset ( 100% );
clip : rect ( 0 0 0 0 );
overflow : hidden;
}
.switcher__input {
clip : rect ( 0 0 0 0 );
clip-path : inset ( 100% );
height : 1px ;
width : 1px ;
overflow : hidden;
position : absolute;
white-space : nowrap;
}
.switcher__icon {
display : block;
width : 100% ;
transition : scale 200ms cubic-bezier ( 0.5 , 0 , 0 , 1 );
}
.switcher__filter {
position : absolute;
width : 0 ;
height : 0 ;
z-index : - 1 ;
}
.switcher__option {
--c: var (--c-content);
display : flex;
justify-content : center;
align-items : center;
padding : 0 16px ;
width : 68px ;
height : 100% ;
box-sizing : border-box;
border-radius : 99em ;
opacity : 1 ;
transition : all 160ms ;
}
.switcher__option :hover {
--c: var (--c-action);
cursor : pointer;
}
.switcher__option :hover .switcher__icon {
scale: 1.2 ;
}
.switcher__option :has ( input :checked ) {
--c: var (--c-content);
cursor : auto;
}
.switcher__option :has ( input :checked ) .switcher__icon {
scale: 1 ;
}
.switcher ::after {
content : "" ;
position : absolute;
left : 4px ;
top : 4px ;
display : block;
width : 84px ;
height : calc ( 100% - 10px );
border-radius : 99em ;
background-color : color-mix (in srgb, var (--c-glass) 36% , transparent);
z-index : - 1 ;
box-shadow : inset 0 0 0 1px
color-mix (
in srgb,
var (--c-light) calc ( var (--glass-reflex-light) * 10% ),
transparent
),
inset 2px 1px 0px - 1px color-mix (in srgb, var (--c-light)
calc ( var (--glass-reflex-light) * 90% ), transparent),
inset - 1.5px - 1px 0px - 1px color-mix (in srgb, var (--c-light)
calc ( var (--glass-reflex-light) * 80% ), transparent),
inset - 2px - 6px 1px - 5px color-mix (in srgb, var (--c-light)
calc ( var (--glass-reflex-light) * 60% ), transparent),
inset - 1px 2px 3px - 1px
color-mix (
in srgb,
var (--c-dark) calc ( var (--glass-reflex-dark) * 20% ),
transparent
),
inset 0px - 4px 1px - 2px
color-mix (
in srgb,
var (--c-dark) calc ( var (--glass-reflex-dark) * 10% ),
transparent
),
0px 3px 6px 0px
color-mix (
in srgb,
var (--c-dark) calc ( var (--glass-reflex-dark) * 8% ),
transparent
);
}
.switcher :has ( input [c-option= "1" ] :checked ) ::after {
translate: 0 0 ;
transform-origin : right;
transition : background-color 400ms cubic-bezier ( 1 , 0 , 0.4 , 1 ),
box-shadow 400ms cubic-bezier ( 1 , 0 , 0.4 , 1 ),
translate 400ms cubic-bezier ( 1 , 0 , 0.4 , 1 );
animation : scaleToggle 440ms ease;
}
.switcher :has ( input [c-option= "2" ] :checked ) ::after {
translate: 76px 0 ;
transition : background-color 400ms cubic-bezier ( 1 , 0 , 0.4 , 1 ),
box-shadow 400ms cubic-bezier ( 1 , 0 , 0.4 , 1 ),
translate 400ms cubic-bezier ( 1 , 0 , 0.4 , 1 );
animation : scaleToggle2 440ms ease;
transform-origin : left; /* Set transform-origin for the second option */
}
@keyframes scaleToggle {
0% {
scale: 1 1 ;
}
50% {
scale: 1.1 1 ;
}
100% {
scale: 1 1 ;
}
}
@keyframes scaleToggle2 {
0% {
scale: 1 1 ;
}
50% {
scale: 1.1 1 ; /* Adjusted scale for consistency */
}
100% {
scale: 1 1 ;
}
}
How It Works (High-Level)
WebGPU Initialization
Detects WebGPU support
Requests adapter and device
Configures the canvas for GPU rendering
Dynamically resizes buffers based on device limits
Compute Shader Pipeline
Each simulation step is broken into GPU compute passes:
Velocity Update → Injects mouse force
Advection → Moves velocity and dye through the grid
Divergence Calculation → Detects compressibility
Pressure Solve → Enforces incompressibility
Gradient Subtraction → Corrects velocity
Vorticity Confinement → Adds swirling motion
Boundary Handling → Prevents fluid escape
Dye Simulation
Dye is stored as RGB buffers
Mouse splats inject colored dye
Procedural palette animation based on time
Diffusion creates smooth color blending
Rendering
A fullscreen quad renders dye buffers
Fragment shader samples dye storage buffers
Alpha is derived from dye intensity
Output is blended directly onto the canvas
Key Features
🚀 GPU-accelerated fluid simulation
🧠 WGSL compute shader architecture
🖱️ Interactive mouse-driven forces
🌊 Realistic swirling and diffusion
🎨 Procedural color palettes
🧩 Modular program-based design
⚡ Optimized buffer reuse and ping-ponging
Javascript Code
Copy /*main*/
let settings = {
grid_size : 64 ,
dye_size : 256 ,
sim_speed : 5 ,
contain_fluid : true ,
velocity_add_intensity : 0.28 ,
velocity_add_radius : 0.001 ,
velocity_diffusion : 1 ,
dye_add_intensity : 0.8 ,
dye_add_radius : 0.0035 ,
dye_diffusion : 0.96204 ,
viscosity : 0 ,
vorticity : 0 ,
pressure_iterations : 8 ,
buffer_view : "dye" ,
input_symmetry : "none"
};
let device, presentationFormat, canvas, context;
const mouseInfos = {
current : null ,
last : null ,
velocity : null
};
// Buffers
let velocity,
velocity0,
dye,
dye0,
divergence,
divergence0,
pressure,
pressure0,
vorticity;
// Uniforms
const globalUniforms = {};
let time,
dt,
mouse,
grid,
uSimSpeed,
vel_force,
vel_radius,
vel_diff,
dye_force,
dye_radius,
dye_diff;
let viscosity, uVorticity, containFluid, uSymmetry, uRenderIntensity;
// Programs
let checkerProgram,
updateDyeProgram,
updateProgram,
advectProgram,
boundaryProgram,
divergenceProgram;
let boundaryDivProgram,
pressureProgram,
boundaryPressureProgram,
gradientSubtractProgram,
advectDyeProgram;
let clearPressureProgram,
vorticityProgram,
vorticityConfinmentProgram,
renderProgram;
function handlePointerMove ( e ) {
const pointer = e.touches ? e.touches[ 0 ] : e;
const rect = canvas.getBoundingClientRect();
if (!mouseInfos.current) mouseInfos.current = [];
mouseInfos.current[ 0 ] = (pointer.clientX - rect.left) / rect.width;
mouseInfos.current[ 1 ] = 1 - (pointer.clientY - rect.top) / rect.height; // Invert Y
}
function onWebGPUDetectionError ( error ) {
console .log( "Could not initialize WebGPU: " + error);
document .querySelector( ".webgpu-not-supported" ).style.visibility = "visible" ;
return false ;
}
// Init the WebGPU context by checking first if everything is supported
// Returns true on init success, false otherwise
async function initContext ( ) {
if (navigator.gpu == null )
return onWebGPUDetectionError( "WebGPU NOT Supported" );
const adapter = await navigator.gpu.requestAdapter();
if (!adapter) return onWebGPUDetectionError( "No adapter found" );
device = await adapter.requestDevice();
canvas = document .getElementById( "fluid-webgpu" );
context = canvas.getContext( "webgpu" );
if (!context) return onWebGPUDetectionError( "Canvas does not support WebGPU" );
// If we got here, WebGPU seems to be supported
// Init canvas
canvas.style.width = "100%" ;
canvas.style.height = "100%" ;
canvas.addEventListener( "mousemove" , handlePointerMove);
canvas.addEventListener( "touchmove" , ( e ) => {
e.preventDefault();
handlePointerMove(e);
});
canvas.addEventListener( "touchstart" , ( e ) => {
e.preventDefault();
handlePointerMove(e);
mouseInfos.last = [...mouseInfos.current];
});
// Init context
presentationFormat = navigator.gpu.getPreferredCanvasFormat(adapter);
context.configure({
device,
format : presentationFormat,
usage : GPUTextureUsage.RENDER_ATTACHMENT,
alphaMode : "premultiplied"
});
// Init buffer sizes
initSizes();
// Resize event
let resizeTimeout;
window .addEventListener( "resize" , () => {
clearTimeout (resizeTimeout);
resizeTimeout = setTimeout (refreshSizes, 150 );
});
return true ;
}
function refreshSizes ( ) {
initSizes();
initBuffers();
initPrograms();
globalUniforms.gridSize.needsUpdate = [
settings.grid_w,
settings.grid_h,
settings.dye_w,
settings.dye_h,
settings.dx,
settings.rdx,
settings.dyeRdx
];
}
// Init buffer & canvas dimensions to fit the screen while keeping the aspect ratio
// and downscaling the dimensions if they exceed the browsers capabilities
function initSizes ( ) {
const dpr = window .devicePixelRatio || 1 ;
const aspectRatio = window .innerWidth / window .innerHeight;
const maxBufferSize = device.limits.maxStorageBufferBindingSize;
const maxCanvasSize = device.limits.maxTextureDimension2D;
// Fit to screen while keeping the aspect ratio
const getPreferredDimensions = ( baseSize ) => {
let w, h;
const scaledBaseSize = baseSize * dpr;
if (aspectRatio > 1 ) {
h = scaledBaseSize;
w = Math .floor(h * aspectRatio);
} else {
w = scaledBaseSize;
h = Math .floor(w / aspectRatio);
}
return getValidDimensions(w, h);
};
// Downscale if necessary to prevent crashes
const getValidDimensions = ( w, h ) => {
let downRatio = 1 ;
// Prevent buffer size overflow
if (w * h * 4 >= maxBufferSize)
downRatio = Math .sqrt(maxBufferSize / (w * h * 4 ));
// Prevent canvas size overflow
if (w > maxCanvasSize) downRatio = maxCanvasSize / w;
else if (h > maxCanvasSize) downRatio = maxCanvasSize / h;
return {
w : Math .floor(w * downRatio),
h : Math .floor(h * downRatio)
};
};
// Calculate simulation buffer dimensions
let gridSize = getPreferredDimensions(settings.grid_size);
settings.grid_w = gridSize.w;
settings.grid_h = gridSize.h;
// Calculate dye & canvas buffer dimensions
let dyeSize = getPreferredDimensions(settings.dye_size);
settings.dye_w = dyeSize.w;
settings.dye_h = dyeSize.h;
// Useful values for the simulation
settings.rdx = settings.grid_size * 4 ;
settings.dyeRdx = settings.dye_size * 4 ;
settings.dx = 1 / settings.rdx;
// Resize the canvas
canvas.width = settings.dye_w;
canvas.height = settings.dye_h;
}
/*shaders*/
const STRUCT_GRID_SIZE = `
struct GridSize {
w : f32,
h : f32,
dyeW: f32,
dyeH: f32,
dx : f32,
rdx : f32,
dyeRdx : f32
}` ;
const STRUCT_MOUSE = `
struct Mouse {
pos: vec2<f32>,
vel: vec2<f32>,
}` ;
// This code initialize the pos and index variables and target only interior cells
const COMPUTE_START = `
var pos = vec2<f32>(global_id.xy);
if (pos.x == 0 || pos.y == 0 || pos.x >= uGrid.w - 1 || pos.y >= uGrid.h - 1) {
return;
}
let index = ID(pos.x, pos.y);` ;
const COMPUTE_START_DYE = `
var pos = vec2<f32>(global_id.xy);
if (pos.x == 0 || pos.y == 0 || pos.x >= uGrid.dyeW - 1 || pos.y >= uGrid.dyeH - 1) {
return;
}
let index = ID(pos.x, pos.y);` ;
// This code initialize the pos and index variables and target all cells
const COMPUTE_START_ALL = `
var pos = vec2<f32>(global_id.xy);
if (pos.x >= uGrid.w || pos.y >= uGrid.h) {
return;
}
let index = ID(pos.x, pos.y);` ;
const SPLAT_CODE = `
var m = uMouse.pos;
var v = uMouse.vel*2.;
var splat = createSplat(p, m, v, uRadius);
if (uSymmetry == 1. || uSymmetry == 3.) {splat += createSplat(p, vec2(1. - m.x, m.y), v * vec2(-1., 1.), uRadius);}
if (uSymmetry == 2. || uSymmetry == 3.) {splat += createSplat(p, vec2(m.x, 1. - m.y), v * vec2(1., -1.), uRadius);}
if (uSymmetry == 3. || uSymmetry == 4.) {splat += createSplat(p, vec2(1. - m.x, 1. - m.y), v * vec2(-1., -1.), uRadius);}
` ;
/// APPLY FORCE SHADER ///
const updateVelocityShader = /* wgsl */ `
${STRUCT_GRID_SIZE}
struct Mouse {
pos: vec2<f32>,
vel: vec2<f32>,
}
@group(0) @binding(0) var<storage, read> x_in : array<f32>;
@group(0) @binding(1) var<storage, read> y_in : array<f32>;
@group(0) @binding(2) var<storage, read_write> x_out : array<f32>;
@group(0) @binding(3) var<storage, read_write> y_out : array<f32>;
@group(0) @binding(4) var<uniform> uGrid: GridSize;
@group(0) @binding(5) var<uniform> uMouse: Mouse;
@group(0) @binding(6) var<uniform> uForce : f32;
@group(0) @binding(7) var<uniform> uRadius : f32;
@group(0) @binding(8) var<uniform> uDiffusion : f32;
@group(0) @binding(9) var<uniform> uDt : f32;
@group(0) @binding(10) var<uniform> uTime : f32;
@group(0) @binding(11) var<uniform> uSymmetry : f32;
fn ID(x : f32, y : f32) -> u32 { return u32(x + y * uGrid.w); }
fn inBetween(x : f32, lower : f32, upper : f32) -> bool {
return x > lower && x < upper;
}
fn inBounds(pos : vec2<f32>, xMin : f32, xMax : f32, yMin: f32, yMax : f32) -> bool {
return inBetween(pos.x, xMin * uGrid.w, xMax * uGrid.w) && inBetween(pos.y, yMin * uGrid.h, yMax * uGrid.h);
}
fn createSplat(pos : vec2<f32>, splatPos : vec2<f32>, vel : vec2<f32>, radius : f32) -> vec2<f32> {
var p = pos - splatPos;
p.x *= uGrid.w / uGrid.h;
var v = vel;
v.x *= uGrid.w / uGrid.h;
var splat = exp(-dot(p, p) / radius) * v;
return splat;
}
@compute @workgroup_size(8, 8)
fn main(@builtin(global_invocation_id) global_id : vec3<u32>) {
${COMPUTE_START}
let tmpT = uTime;
var p = pos/vec2(uGrid.w, uGrid.h);
${SPLAT_CODE}
splat *= uForce * uDt * 200.;
x_out[index] = x_in[index]*uDiffusion + splat.x;
y_out[index] = y_in[index]*uDiffusion + splat.y;
}` ;
const updateDyeShader = /* wgsl */ `
${STRUCT_GRID_SIZE}
struct Mouse {
pos: vec2<f32>,
vel: vec2<f32>,
}
@group(0) @binding(0) var<storage, read> x_in : array<f32>;
@group(0) @binding(1) var<storage, read> y_in : array<f32>;
@group(0) @binding(2) var<storage, read> z_in : array<f32>;
@group(0) @binding(3) var<storage, read_write> x_out : array<f32>;
@group(0) @binding(4) var<storage, read_write> y_out : array<f32>;
@group(0) @binding(5) var<storage, read_write> z_out : array<f32>;
@group(0) @binding(6) var<uniform> uGrid: GridSize;
@group(0) @binding(7) var<uniform> uMouse: Mouse;
@group(0) @binding(8) var<uniform> uForce : f32;
@group(0) @binding(9) var<uniform> uRadius : f32;
@group(0) @binding(10) var<uniform> uDiffusion : f32;
@group(0) @binding(11) var<uniform> uTime : f32;
@group(0) @binding(12) var<uniform> uDt : f32;
@group(0) @binding(13) var<uniform> uSymmetry : f32;
fn ID(x : f32, y : f32) -> u32 { return u32(x + y * uGrid.dyeW); }
fn inBetween(x : f32, lower : f32, upper : f32) -> bool {
return x > lower && x < upper;
}
fn inBounds(pos : vec2<f32>, xMin : f32, xMax : f32, yMin: f32, yMax : f32) -> bool {
return inBetween(pos.x, xMin * uGrid.dyeW, xMax * uGrid.dyeW) && inBetween(pos.y, yMin * uGrid.dyeH, yMax * uGrid.dyeH);
}
// cosine based palette, 4 vec3 params
fn palette(t : f32, a : vec3<f32>, b : vec3<f32>, c : vec3<f32>, d : vec3<f32> ) -> vec3<f32> {
return a + b*cos( 6.28318*(c*t+d) );
}
fn createSplat(pos : vec2<f32>, splatPos : vec2<f32>, vel : vec2<f32>, radius : f32) -> vec3<f32> {
var p = pos - splatPos;
p.x *= uGrid.w / uGrid.h;
var v = vel;
v.x *= uGrid.w / uGrid.h;
var splat = exp(-dot(p, p) / radius) * length(v);
return vec3(splat);
}
@compute @workgroup_size(8, 8)
fn main(@builtin(global_invocation_id) global_id : vec3<u32>) {
${COMPUTE_START_DYE}
let col_incr = 0.15;
let col_start = palette(uTime/8., vec3(1), vec3(0.5), vec3(1), vec3(0, col_incr, col_incr*2.));
var p = pos/vec2(uGrid.dyeW, uGrid.dyeH);
${SPLAT_CODE}
splat *= col_start * uForce * uDt * 100.;
x_out[index] = max(0., x_in[index]*uDiffusion + splat.x);
y_out[index] = max(0., y_in[index]*uDiffusion + splat.y);
z_out[index] = max(0., z_in[index]*uDiffusion + splat.z);
}` ;
/// ADVECT SHADER ///
const advectShader = /* wgsl */ `
${STRUCT_GRID_SIZE}
@group(0) @binding(0) var<storage, read> x_in : array<f32>;
@group(0) @binding(1) var<storage, read> y_in : array<f32>;
@group(0) @binding(2) var<storage, read> x_vel : array<f32>;
@group(0) @binding(3) var<storage, read> y_vel : array<f32>;
@group(0) @binding(4) var<storage, read_write> x_out : array<f32>;
@group(0) @binding(5) var<storage, read_write> y_out : array<f32>;
@group(0) @binding(6) var<uniform> uGrid : GridSize;
@group(0) @binding(7) var<uniform> uDt : f32;
fn ID(x : f32, y : f32) -> u32 { return u32(x + y * uGrid.w); }
fn in(x : f32, y : f32) -> vec2<f32> { let id = ID(x, y); return vec2(x_in[id], y_in[id]); }
@compute @workgroup_size(8, 8)
fn main(@builtin(global_invocation_id) global_id : vec3<u32>) {
${COMPUTE_START}
var x = pos.x - uDt * uGrid.rdx * x_vel[index];
var y = pos.y - uDt * uGrid.rdx * y_vel[index];
if (x < 0) { x = 0; }
else if (x >= uGrid.w - 1) { x = uGrid.w - 1; }
if (y < 0) { y = 0; }
else if (y >= uGrid.h - 1) { y = uGrid.h - 1; }
let x1 = floor(x);
let y1 = floor(y);
let x2 = x1 + 1;
let y2 = y1 + 1;
let TL = in(x1, y2);
let TR = in(x2, y2);
let BL = in(x1, y1);
let BR = in(x2, y1);
let xMod = fract(x);
let yMod = fract(y);
let bilerp = mix( mix(BL, BR, xMod), mix(TL, TR, xMod), yMod );
x_out[index] = bilerp.x;
y_out[index] = bilerp.y;
}` ;
const advectDyeShader = /* wgsl */ `
${STRUCT_GRID_SIZE}
@group(0) @binding(0) var<storage, read> x_in : array<f32>;
@group(0) @binding(1) var<storage, read> y_in : array<f32>;
@group(0) @binding(2) var<storage, read> z_in : array<f32>;
@group(0) @binding(3) var<storage, read> x_vel : array<f32>;
@group(0) @binding(4) var<storage, read> y_vel : array<f32>;
@group(0) @binding(5) var<storage, read_write> x_out : array<f32>;
@group(0) @binding(6) var<storage, read_write> y_out : array<f32>;
@group(0) @binding(7) var<storage, read_write> z_out : array<f32>;
@group(0) @binding(8) var<uniform> uGrid : GridSize;
@group(0) @binding(9) var<uniform> uDt : f32;
fn ID(x : f32, y : f32) -> u32 { return u32(x + y * uGrid.dyeW); }
fn in(x : f32, y : f32) -> vec3<f32> { let id = ID(x, y); return vec3(x_in[id], y_in[id], z_in[id]); }
fn vel(x : f32, y : f32) -> vec2<f32> {
let id = u32(i32(x) + i32(y) * i32(uGrid.w));
return vec2(x_vel[id], y_vel[id]);
}
fn vel_bilerp(x0 : f32, y0 : f32) -> vec2<f32> {
var x = x0 * uGrid.w / uGrid.dyeW;
var y = y0 * uGrid.h / uGrid.dyeH;
if (x < 0) { x = 0; }
else if (x >= uGrid.w - 1) { x = uGrid.w - 1; }
if (y < 0) { y = 0; }
else if (y >= uGrid.h - 1) { y = uGrid.h - 1; }
let x1 = floor(x);
let y1 = floor(y);
let x2 = x1 + 1;
let y2 = y1 + 1;
let TL = vel(x1, y2);
let TR = vel(x2, y2);
let BL = vel(x1, y1);
let BR = vel(x2, y1);
let xMod = fract(x);
let yMod = fract(y);
return mix( mix(BL, BR, xMod), mix(TL, TR, xMod), yMod );
}
@compute @workgroup_size(8, 8)
fn main(@builtin(global_invocation_id) global_id : vec3<u32>) {
${COMPUTE_START_DYE}
let V = vel_bilerp(pos.x, pos.y);
var x = pos.x - uDt * uGrid.dyeRdx * V.x;
var y = pos.y - uDt * uGrid.dyeRdx * V.y;
if (x < 0) { x = 0; }
else if (x >= uGrid.dyeW - 1) { x = uGrid.dyeW - 1; }
if (y < 0) { y = 0; }
else if (y >= uGrid.dyeH - 1) { y = uGrid.dyeH - 1; }
let x1 = floor(x);
let y1 = floor(y);
let x2 = x1 + 1;
let y2 = y1 + 1;
let TL = in(x1, y2);
let TR = in(x2, y2);
let BL = in(x1, y1);
let BR = in(x2, y1);
let xMod = fract(x);
let yMod = fract(y);
let bilerp = mix( mix(BL, BR, xMod), mix(TL, TR, xMod), yMod );
x_out[index] = bilerp.x;
y_out[index] = bilerp.y;
z_out[index] = bilerp.z;
}` ;
/// DIVERGENCE SHADER ///
const divergenceShader = /* wgsl */ `
${STRUCT_GRID_SIZE}
@group(0) @binding(0) var<storage, read> x_vel : array<f32>;
@group(0) @binding(1) var<storage, read> y_vel : array<f32>;
@group(0) @binding(2) var<storage, read_write> div : array<f32>;
@group(0) @binding(3) var<uniform> uGrid : GridSize;
fn ID(x : f32, y : f32) -> u32 { return u32(x + y * uGrid.w); }
fn vel(x : f32, y : f32) -> vec2<f32> { let id = ID(x, y); return vec2(x_vel[id], y_vel[id]); }
@compute @workgroup_size(8, 8)
fn main(@builtin(global_invocation_id) global_id : vec3<u32>) {
${COMPUTE_START}
let L = vel(pos.x - 1, pos.y).x;
let R = vel(pos.x + 1, pos.y).x;
let B = vel(pos.x, pos.y - 1).y;
let T = vel(pos.x, pos.y + 1).y;
div[index] = 0.5 * uGrid.rdx * ((R - L) + (T - B));
}` ;
/// PRESSURE SHADER ///
const pressureShader = /* wgsl */ `
${STRUCT_GRID_SIZE}
@group(0) @binding(0) var<storage, read> pres_in : array<f32>;
@group(0) @binding(1) var<storage, read> div : array<f32>;
@group(0) @binding(2) var<storage, read_write> pres_out : array<f32>;
@group(0) @binding(3) var<uniform> uGrid : GridSize;
fn ID(x : f32, y : f32) -> u32 { return u32(x + y * uGrid.w); }
fn in(x : f32, y : f32) -> f32 { let id = ID(x, y); return pres_in[id]; }
@compute @workgroup_size(8, 8)
fn main(@builtin(global_invocation_id) global_id : vec3<u32>) {
${COMPUTE_START}
let L = pos - vec2(1, 0);
let R = pos + vec2(1, 0);
let B = pos - vec2(0, 1);
let T = pos + vec2(0, 1);
let Lx = in(L.x, L.y);
let Rx = in(R.x, R.y);
let Bx = in(B.x, B.y);
let Tx = in(T.x, T.y);
let bC = div[index];
let alpha = -(uGrid.dx * uGrid.dx);
let rBeta = .25;
pres_out[index] = (Lx + Rx + Bx + Tx + alpha * bC) * rBeta;
}` ;
/// GRADIENT SUBTRACT SHADER ///
const gradientSubtractShader = /* wgsl */ `
${STRUCT_GRID_SIZE}
@group(0) @binding(0) var<storage, read> pressure : array<f32>;
@group(0) @binding(1) var<storage, read> x_vel : array<f32>;
@group(0) @binding(2) var<storage, read> y_vel : array<f32>;
@group(0) @binding(3) var<storage, read_write> x_out : array<f32>;
@group(0) @binding(4) var<storage, read_write> y_out : array<f32>;
@group(0) @binding(5) var<uniform> uGrid : GridSize;
fn ID(x : f32, y : f32) -> u32 { return u32(x + y * uGrid.w); }
fn pres(x : f32, y : f32) -> f32 { let id = ID(x, y); return pressure[id]; }
@compute @workgroup_size(8, 8)
fn main(@builtin(global_invocation_id) global_id : vec3<u32>) {
${COMPUTE_START}
let L = pos - vec2(1, 0);
let R = pos + vec2(1, 0);
let B = pos - vec2(0, 1);
let T = pos + vec2(0, 1);
let xL = pres(L.x, L.y);
let xR = pres(R.x, R.y);
let yB = pres(B.x, B.y);
let yT = pres(T.x, T.y);
let finalX = x_vel[index] - .5 * uGrid.rdx * (xR - xL);
let finalY = y_vel[index] - .5 * uGrid.rdx * (yT - yB);
x_out[index] = finalX;
y_out[index] = finalY;
}` ;
/// VORTICITY SHADER ///
const vorticityShader = /* wgsl */ `
${STRUCT_GRID_SIZE}
@group(0) @binding(0) var<storage, read> x_vel : array<f32>;
@group(0) @binding(1) var<storage, read> y_vel : array<f32>;
@group(0) @binding(2) var<storage, read_write> vorticity : array<f32>;
@group(0) @binding(3) var<uniform> uGrid : GridSize;
fn ID(x : f32, y : f32) -> u32 { return u32(x + y * uGrid.w); }
fn vel(x : f32, y : f32) -> vec2<f32> { let id = ID(x, y); return vec2(x_vel[id], y_vel[id]); }
@compute @workgroup_size(8, 8)
fn main(@builtin(global_invocation_id) global_id : vec3<u32>) {
${COMPUTE_START}
let Ly = vel(pos.x - 1, pos.y).y;
let Ry = vel(pos.x + 1, pos.y).y;
let Bx = vel(pos.x, pos.y - 1).x;
let Tx = vel(pos.x, pos.y + 1).x;
vorticity[index] = 0.5 * uGrid.rdx * ((Ry - Ly) - (Tx - Bx));
}` ;
/// VORTICITY CONFINMENT SHADER ///
const vorticityConfinmentShader = /* wgsl */ `
${STRUCT_GRID_SIZE}
@group(0) @binding(0) var<storage, read> x_vel_in : array<f32>;
@group(0) @binding(1) var<storage, read> y_vel_in : array<f32>;
@group(0) @binding(2) var<storage, read> vorticity : array<f32>;
@group(0) @binding(3) var<storage, read_write> x_vel_out : array<f32>;
@group(0) @binding(4) var<storage, read_write> y_vel_out : array<f32>;
@group(0) @binding(5) var<uniform> uGrid : GridSize;
@group(0) @binding(6) var<uniform> uDt : f32;
@group(0) @binding(7) var<uniform> uVorticity : f32;
fn ID(x : f32, y : f32) -> u32 { return u32(x + y * uGrid.w); }
fn vort(x : f32, y : f32) -> f32 { let id = ID(x, y); return vorticity[id]; }
@compute @workgroup_size(8, 8)
fn main(@builtin(global_invocation_id) global_id : vec3<u32>) {
${COMPUTE_START}
let L = vort(pos.x - 1, pos.y);
let R = vort(pos.x + 1, pos.y);
let B = vort(pos.x, pos.y - 1);
let T = vort(pos.x, pos.y + 1);
let C = vorticity[index];
var force = 0.5 * uGrid.rdx * vec2(abs(T) - abs(B), abs(R) - abs(L));
let epsilon = 2.4414e-4;
let magSqr = max(epsilon, dot(force, force));
force = force / sqrt(magSqr);
force *= uGrid.dx * uVorticity * uDt * C * vec2(1, -1);
x_vel_out[index] = x_vel_in[index] + force.x;
y_vel_out[index] = y_vel_in[index] + force.y;
}` ;
/// CLEAR PRESSURE SHADER ///
const clearPressureShader = /* wgsl */ `
${STRUCT_GRID_SIZE}
@group(0) @binding(0) var<storage, read> x_in : array<f32>;
@group(0) @binding(1) var<storage, read_write> x_out : array<f32>;
@group(0) @binding(2) var<uniform> uGrid : GridSize;
@group(0) @binding(3) var<uniform> uVisc : f32;
fn ID(x : f32, y : f32) -> u32 { return u32(x + y * uGrid.w); }
@compute @workgroup_size(8, 8)
fn main(@builtin(global_invocation_id) global_id : vec3<u32>) {
${COMPUTE_START_ALL}
x_out[index] = x_in[index]*uVisc;
}` ;
/// BOUNDARY SHADER ///
const boundaryShader = /* wgsl */ `
${STRUCT_GRID_SIZE}
@group(0) @binding(0) var<storage, read> x_in : array<f32>;
@group(0) @binding(1) var<storage, read> y_in : array<f32>;
@group(0) @binding(2) var<storage, read_write> x_out : array<f32>;
@group(0) @binding(3) var<storage, read_write> y_out : array<f32>;
@group(0) @binding(4) var<uniform> uGrid : GridSize;
@group(0) @binding(5) var<uniform> containFluid : f32;
fn ID(x : f32, y : f32) -> u32 { return u32(x + y * uGrid.w); }
@compute @workgroup_size(8, 8)
fn main(@builtin(global_invocation_id) global_id : vec3<u32>) {
${COMPUTE_START_ALL}
// disable scale to disable contained bounds
var scaleX = 1.;
var scaleY = 1.;
if (pos.x == 0) { pos.x += 1; scaleX = -1.; }
else if (pos.x == uGrid.w - 1) { pos.x -= 1; scaleX = -1.; }
if (pos.y == 0) { pos.y += 1; scaleY = -1.; }
else if (pos.y == uGrid.h - 1) { pos.y -= 1; scaleY = -1.; }
if (containFluid == 0.) {
scaleX = 1.;
scaleY = 1.;
}
x_out[index] = x_in[ID(pos.x, pos.y)] * scaleX;
y_out[index] = y_in[ID(pos.x, pos.y)] * scaleY;
}` ;
/// BOUNDARY PRESSURE SHADER ///
const boundaryPressureShader = /* wgsl */ `
${STRUCT_GRID_SIZE}
@group(0) @binding(0) var<storage, read> x_in : array<f32>;
@group(0) @binding(1) var<storage, read_write> x_out : array<f32>;
@group(0) @binding(2) var<uniform> uGrid : GridSize;
fn ID(x : f32, y : f32) -> u32 { return u32(x + y * uGrid.w); }
@compute @workgroup_size(8, 8)
fn main(@builtin(global_invocation_id) global_id : vec3<u32>) {
${COMPUTE_START_ALL}
if (pos.x == 0) { pos.x += 1; }
else if (pos.x == uGrid.w - 1) { pos.x -= 1; }
if (pos.y == 0) { pos.y += 1; }
else if (pos.y == uGrid.h - 1) { pos.y -= 1; }
x_out[index] = x_in[ID(pos.x, pos.y)];
}` ;
const checkerboardShader = /* wgsl */ `
${STRUCT_GRID_SIZE}
@group(0) @binding(0) var<storage, read_write> x_out : array<f32>;
@group(0) @binding(1) var<storage, read_write> y_out : array<f32>;
@group(0) @binding(2) var<storage, read_write> z_out : array<f32>;
@group(0) @binding(3) var<uniform> uGrid : GridSize;
@group(0) @binding(4) var<uniform> uTime : f32;
fn ID(x : f32, y : f32) -> u32 { return u32(x + y * uGrid.dyeW); }
fn noise(p_ : vec3<f32>) -> f32 {
var p = p_;
var ip=floor(p);
p-=ip;
var s=vec3(7.,157.,113.);
var h=vec4(0.,s.y, s.z,s.y+s.z)+dot(ip,s);
p=p*p*(3. - 2.*p);
h=mix(fract(sin(h)*43758.5),fract(sin(h+s.x)*43758.5),p.x);
var r=mix(h.xz,h.yw,p.y);
h.x = r.x;
h.y = r.y;
return mix(h.x,h.y,p.z);
}
fn fbm(p_ : vec3<f32>, octaveNum : i32) -> vec2<f32> {
var p=p_;
var acc = vec2(0.);
var freq = 1.0;
var amp = 0.5;
var shift = vec3(100.);
for (var i = 0; i < octaveNum; i++) {
acc += vec2(noise(p), noise(p + vec3(0.,0.,10.))) * amp;
p = p * 2.0 + shift;
amp *= 0.5;
}
return acc;
}
@compute @workgroup_size(8, 8)
fn main(@builtin(global_invocation_id) global_id : vec3<u32>) {
${COMPUTE_START_DYE}
var uv = pos/vec2(uGrid.dyeW, uGrid.dyeH);
var zoom = 4.;
var smallNoise = fbm(vec3(uv.x*zoom*2., uv.y*zoom*2., uTime+2.145), 7) - .5;
var bigNoise = fbm(vec3(uv.x*zoom, uv.y*zoom, uTime*.1+30.), 7) - .5;
var noise = max(length(bigNoise) * 0.035, 0.);
var noise2 = max(length(smallNoise) * 0.035, 0.);
noise = noise + noise2 * .05;
var czoom = 4.;
var n = fbm(vec3(uv.x*czoom, uv.y*czoom, uTime*.1+63.1), 7)*.75+.25;
var n2 = fbm(vec3(uv.x*czoom, uv.y*czoom, uTime*.1+23.4), 7)*.75+.25;
var col = vec3(1.);
x_out[index] += noise * col.x;
y_out[index] += noise * col.y;
z_out[index] += noise * col.z;
}` ;
/*render*/
const renderShader = /* wgsl */ `
${STRUCT_GRID_SIZE}
struct VertexOut {
@builtin(position) position : vec4<f32>,
@location(1) uv : vec2<f32>,
};
@group(0) @binding(0) var<storage, read> fieldX : array<f32>;
@group(0) @binding(1) var<storage, read> fieldY : array<f32>;
@group(0) @binding(2) var<storage, read> fieldZ : array<f32>;
@group(0) @binding(3) var<uniform> uGrid : GridSize;
@group(0) @binding(4) var<uniform> multiplier : f32;
@vertex
fn vertex_main(@location(0) position: vec4<f32>) -> VertexOut
{
var output : VertexOut;
output.position = position;
output.uv = position.xy*.5+.5;
return output;
}
@fragment
fn fragment_main(fragData : VertexOut) -> @location(0) vec4<f32>
{
var w = uGrid.dyeW;
var h = uGrid.dyeH;
let fuv = vec2<f32>((floor(fragData.uv*vec2(w, h))));
let id = u32(fuv.x + fuv.y * w);
let r = fieldX[id];
let g = fieldY[id];
let b = fieldZ[id];
let col = vec3(r, g, b);
let alpha = clamp(length(col), 0.0, 1.0);
return vec4(col * multiplier, alpha);
}
` ;
// Renders 3 (r, g, b) storage buffers to the canvas
class RenderProgram {
constructor ( ) {
const vertices = new Float32Array ([
- 1 ,
- 1 ,
0 ,
1 ,
- 1 ,
1 ,
0 ,
1 ,
1 ,
- 1 ,
0 ,
1 ,
1 ,
- 1 ,
0 ,
1 ,
- 1 ,
1 ,
0 ,
1 ,
1 ,
1 ,
0 ,
1
]);
this .vertexBuffer = device.createBuffer({
size : vertices.byteLength,
usage : GPUBufferUsage.VERTEX | GPUBufferUsage.COPY_DST,
mappedAtCreation : true
});
new Float32Array ( this .vertexBuffer.getMappedRange()).set(vertices);
this .vertexBuffer.unmap();
const vertexBuffersDescriptors = [
{
attributes : [
{
shaderLocation : 0 ,
offset : 0 ,
format : "float32x4"
}
],
arrayStride : 16 ,
stepMode : "vertex"
}
];
const shaderModule = device.createShaderModule({
code : renderShader
});
this .renderPipeline = device.createRenderPipeline({
layout : "auto" ,
vertex : {
module : shaderModule,
entryPoint : "vertex_main" ,
buffers : vertexBuffersDescriptors
},
fragment : {
module : shaderModule,
entryPoint : "fragment_main" ,
targets : [
{
format : presentationFormat
}
]
},
primitive : {
topology : "triangle-list"
}
});
// The r,g,b buffer containing the data to render
this .buffer = new DynamicBuffer({
dims : 3 ,
w : settings.dye_w,
h : settings.dye_h
});
// Uniforms
const entries = [
...this.buffer.buffers,
globalUniforms.gridSize.buffer,
globalUniforms.render_intensity_multiplier.buffer
].map( ( b, i ) => ({
binding : i,
resource : { buffer : b }
}));
this .renderBindGroup = device.createBindGroup({
layout : this .renderPipeline.getBindGroupLayout( 0 ),
entries
});
this .renderPassDescriptor = {
colorAttachments : [
{
clearValue : { r : 0.0 , g : 0.0 , b : 0.0 , a : 0.0 },
loadOp : "clear" ,
storeOp : "store"
}
]
};
}
// Dispatch a draw command to render on the canvas
dispatch ( commandEncoder ) {
this .renderPassDescriptor.colorAttachments[ 0 ].view = context
.getCurrentTexture()
.createView();
const renderPassEncoder = commandEncoder.beginRenderPass(
this .renderPassDescriptor
);
renderPassEncoder.setPipeline( this .renderPipeline);
renderPassEncoder.setBindGroup( 0 , this .renderBindGroup);
renderPassEncoder.setVertexBuffer( 0 , this .vertexBuffer);
renderPassEncoder.draw( 6 );
renderPassEncoder.end();
}
}
/*utils*/
// Creates and manage multi-dimensional buffers by creating a buffer for each dimension
class DynamicBuffer {
constructor ( {
dims = 1 , // Number of dimensions
w = settings.grid_w, // Buffer width
h = settings.grid_h // Buffer height
} = {} ) {
this .dims = dims;
this .bufferSize = w * h * 4 ;
this .w = w;
this .h = h;
this .buffers = new Array (dims).fill().map( ( _ ) =>
device.createBuffer({
size : this .bufferSize,
usage :
GPUBufferUsage.STORAGE |
GPUBufferUsage.COPY_SRC |
GPUBufferUsage.COPY_DST
})
);
}
// Copy each buffer to another DynamicBuffer's buffers.
// If the dimensions don't match, the last non-empty dimension will be copied instead
copyTo ( buffer, commandEncoder ) {
for ( let i = 0 ; i < Math .max( this .dims, buffer.dims); i++) {
commandEncoder.copyBufferToBuffer(
this .buffers[ Math .min(i, this .buffers.length - 1 )],
0 ,
buffer.buffers[ Math .min(i, buffer.buffers.length - 1 )],
0 ,
this .bufferSize
);
}
}
// Reset all the buffers
clear ( queue ) {
for ( let i = 0 ; i < this .dims; i++) {
queue.writeBuffer( this .buffers[i], 0 , new Float32Array ( this .w * this .h));
}
}
}
// Manage uniform buffers relative to the compute shaders
class Uniform {
constructor ( name, { size, value } = {} ) {
this .name = name;
this .size = size ?? (value && typeof value === "object" ? value.length : 1 );
this .needsUpdate = false ;
if ( this .size === 1 ) {
if (settings[name] == null ) {
settings[name] = value ?? 0 ;
this .alwaysUpdate = true ;
}
}
if ( this .size === 1 || value != null ) {
this .buffer = device.createBuffer({
mappedAtCreation : true ,
size : this .size * 4 ,
usage : GPUBufferUsage.UNIFORM | GPUBufferUsage.COPY_DST
});
const arrayBuffer = this .buffer.getMappedRange();
const sourceValue = value ?? [settings[ this .name]];
const sourceArray =
typeof sourceValue === "number"
? [sourceValue]
: Array .isArray(sourceValue)
? sourceValue
: [ 0 ]; // Default to [0] if value is invalid
new Float32Array (arrayBuffer).set( new Float32Array (sourceArray));
this .buffer.unmap();
} else {
this .buffer = device.createBuffer({
size : this .size * 4 ,
usage : GPUBufferUsage.UNIFORM | GPUBufferUsage.COPY_DST
});
}
globalUniforms[name] = this ;
}
setValue ( value ) {
settings[ this .name] = value;
this .needsUpdate = true ;
}
update ( queue, value ) {
if ( this .needsUpdate || this .alwaysUpdate || value != null ) {
if ( typeof this .needsUpdate !== "boolean" ) value = this .needsUpdate;
queue.writeBuffer(
this .buffer,
0 ,
new Float32Array (value ?? [ parseFloat (settings[ this .name])]),
0 ,
this .size
);
this .needsUpdate = false ;
}
}
}
// Creates a shader module, compute pipeline & bind group to use with the GPU
class Program {
constructor ( {
buffers = [], // Storage buffers
uniforms = [], // Uniform buffers
shader, // WGSL Compute Shader as a string
dispatchX = settings.grid_w, // Dispatch workers width
dispatchY = settings.grid_h // Dispatch workers height
} ) {
this .computePipeline = device.createComputePipeline({
layout : "auto" ,
compute : {
module : device.createShaderModule({ code : shader }),
entryPoint : "main"
}
});
const storageEntries = buffers.map( ( b ) => b.buffers).flat();
const uniformEntries = uniforms
.filter( ( u ) => u && u.buffer)
.map( ( u ) => u.buffer);
const allEntries = [...storageEntries, ...uniformEntries].map(
( buffer, i ) => ({
binding : i,
resource : { buffer }
})
);
this .bindGroup = device.createBindGroup({
layout : this .computePipeline.getBindGroupLayout( 0 ),
entries : allEntries
});
this .dispatchX = dispatchX;
this .dispatchY = dispatchY;
}
dispatch ( passEncoder ) {
passEncoder.setPipeline( this .computePipeline);
passEncoder.setBindGroup( 0 , this .bindGroup);
passEncoder.dispatchWorkgroups(
Math .ceil( this .dispatchX / 8 ),
Math .ceil( this .dispatchY / 8 )
);
}
}
/// Useful classes for cleaner understanding of the input and output buffers
/// used in the declarations of programs & fluid simulation steps
class AdvectProgram extends Program {
constructor ( {
in_quantity,
in_velocity,
out_quantity,
uniforms,
shader = advectShader,
...props
} ) {
uniforms ??= [globalUniforms.gridSize];
super ({
buffers : [in_quantity, in_velocity, out_quantity],
uniforms,
shader,
...props
});
}
}
class DivergenceProgram extends Program {
constructor ( {
in_velocity,
out_divergence,
uniforms,
shader = divergenceShader
} ) {
uniforms ??= [globalUniforms.gridSize];
super ({ buffers : [in_velocity, out_divergence], uniforms, shader });
}
}
class PressureProgram extends Program {
constructor ( {
in_pressure,
in_divergence,
out_pressure,
uniforms,
shader = pressureShader
} ) {
uniforms ??= [globalUniforms.gridSize];
super ({
buffers : [in_pressure, in_divergence, out_pressure],
uniforms,
shader
});
}
}
class GradientSubtractProgram extends Program {
constructor ( {
in_pressure,
in_velocity,
out_velocity,
uniforms,
shader = gradientSubtractShader
} ) {
uniforms ??= [globalUniforms.gridSize];
super ({
buffers : [in_pressure, in_velocity, out_velocity],
uniforms,
shader
});
}
}
class BoundaryProgram extends Program {
constructor ( {
in_quantity,
out_quantity,
uniforms,
shader = boundaryShader
} ) {
uniforms ??= [globalUniforms.gridSize];
super ({ buffers : [in_quantity, out_quantity], uniforms, shader });
}
}
class UpdateProgram extends Program {
constructor ( {
in_quantity,
out_quantity,
uniforms,
shader = updateVelocityShader,
...props
} ) {
uniforms ??= [globalUniforms.gridSize];
super ({ buffers : [in_quantity, out_quantity], uniforms, shader, ...props });
}
}
class VorticityProgram extends Program {
constructor ( {
in_velocity,
out_vorticity,
uniforms,
shader = vorticityShader,
...props
} ) {
uniforms ??= [globalUniforms.gridSize];
super ({
buffers : [in_velocity, out_vorticity],
uniforms,
shader,
...props
});
}
}
class VorticityConfinmentProgram extends Program {
constructor ( {
in_velocity,
in_vorticity,
out_velocity,
uniforms,
shader = vorticityConfinmentShader,
...props
} ) {
uniforms ??= [globalUniforms.gridSize];
super ({
buffers : [in_velocity, in_vorticity, out_velocity],
uniforms,
shader,
...props
});
}
}
function initBuffers ( ) {
velocity = new DynamicBuffer({ dims : 2 });
velocity0 = new DynamicBuffer({ dims : 2 });
dye = new DynamicBuffer({ dims : 3 , w : settings.dye_w, h : settings.dye_h });
dye0 = new DynamicBuffer({ dims : 3 , w : settings.dye_w, h : settings.dye_h });
divergence = new DynamicBuffer();
divergence0 = new DynamicBuffer();
pressure = new DynamicBuffer();
pressure0 = new DynamicBuffer();
vorticity = new DynamicBuffer();
}
function initUniforms ( ) {
time = new Uniform( "time" );
dt = new Uniform( "dt" );
mouse = new Uniform( "mouseInfos" , { size : 4 });
grid = new Uniform( "gridSize" , {
size : 7 ,
value : [
settings.grid_w,
settings.grid_h,
settings.dye_w,
settings.dye_h,
settings.dx,
settings.rdx,
settings.dyeRdx
]
});
uSimSpeed = new Uniform( "sim_speed" , { value : settings.sim_speed });
vel_force = new Uniform( "velocity_add_intensity" , {
value : settings.velocity_add_intensity
});
vel_radius = new Uniform( "velocity_add_radius" , {
value : settings.velocity_add_radius
});
vel_diff = new Uniform( "velocity_diffusion" , {
value : settings.velocity_diffusion
});
dye_force = new Uniform( "dye_add_intensity" , {
value : settings.dye_add_intensity
});
dye_radius = new Uniform( "dye_add_radius" , {
value : settings.dye_add_radius
});
dye_diff = new Uniform( "dye_diffusion" , {
value : settings.dye_diffusion
});
viscosity = new Uniform( "viscosity" , {
value : settings.viscosity
});
uVorticity = new Uniform( "vorticity" , {
value : settings.vorticity
});
containFluid = new Uniform( "contain_fluid" , {
value : settings.contain_fluid
});
uSymmetry = new Uniform( "mouse_type" , { value : 0 });
uRenderIntensity = new Uniform( "render_intensity_multiplier" , { value : 1 });
}
function initPrograms ( ) {
checkerProgram = new Program({
buffers : [dye],
shader : checkerboardShader,
dispatchX : settings.dye_w,
dispatchY : settings.dye_h,
uniforms : [grid, time]
});
updateDyeProgram = new UpdateProgram({
in_quantity : dye,
out_quantity : dye0,
uniforms : [
grid,
mouse,
dye_force,
dye_radius,
dye_diff,
time,
dt,
uSymmetry
],
dispatchX : settings.dye_w,
dispatchY : settings.dye_h,
shader : updateDyeShader
});
updateProgram = new UpdateProgram({
in_quantity : velocity,
out_quantity : velocity0,
uniforms : [
grid,
mouse,
vel_force,
vel_radius,
vel_diff,
dt,
time,
uSymmetry
]
});
advectProgram = new AdvectProgram({
in_quantity : velocity0,
in_velocity : velocity0,
out_quantity : velocity,
uniforms : [grid, dt]
});
boundaryProgram = new BoundaryProgram({
in_quantity : velocity,
out_quantity : velocity0,
uniforms : [grid, containFluid]
});
divergenceProgram = new DivergenceProgram({
in_velocity : velocity0,
out_divergence : divergence0
});
boundaryDivProgram = new BoundaryProgram({
in_quantity : divergence0,
out_quantity : divergence,
shader : boundaryPressureShader
});
pressureProgram = new PressureProgram({
in_pressure : pressure,
in_divergence : divergence,
out_pressure : pressure0
});
boundaryPressureProgram = new BoundaryProgram({
in_quantity : pressure0,
out_quantity : pressure,
shader : boundaryPressureShader
});
gradientSubtractProgram = new GradientSubtractProgram({
in_pressure : pressure,
in_velocity : velocity0,
out_velocity : velocity
});
advectDyeProgram = new AdvectProgram({
in_quantity : dye0,
in_velocity : velocity,
out_quantity : dye,
uniforms : [grid, dt],
dispatchX : settings.dye_w,
dispatchY : settings.dye_h,
shader : advectDyeShader
});
clearPressureProgram = new UpdateProgram({
in_quantity : pressure,
out_quantity : pressure0,
uniforms : [grid, viscosity],
shader : clearPressureShader
});
vorticityProgram = new VorticityProgram({
in_velocity : velocity,
out_vorticity : vorticity
});
vorticityConfinmentProgram = new VorticityConfinmentProgram({
in_velocity : velocity,
in_vorticity : vorticity,
out_velocity : velocity0,
uniforms : [grid, dt, uVorticity]
});
renderProgram = new RenderProgram();
}
async function main ( ) {
// Init WebGPU Context
const initializationSuccess = await initContext();
if (!initializationSuccess) return ;
// Init buffers, uniforms and programs
initBuffers();
initUniforms();
initPrograms();
// Simulation reset
function reset ( ) {
velocity.clear(device.queue);
dye.clear(device.queue);
pressure.clear(device.queue);
settings.time = 0 ;
}
settings.reset = reset;
// Fluid simulation step
function dispatchComputePipeline ( passEncoder ) {
// Add velocity and dye at the mouse position
updateDyeProgram.dispatch(passEncoder);
updateProgram.dispatch(passEncoder);
// Advect the velocity field through itself
advectProgram.dispatch(passEncoder);
boundaryProgram.dispatch(passEncoder); // boundary conditions
// Compute the divergence
divergenceProgram.dispatch(passEncoder);
boundaryDivProgram.dispatch(passEncoder); // boundary conditions
// Solve the jacobi-pressure equation
for ( let i = 0 ; i < settings.pressure_iterations; i++) {
pressureProgram.dispatch(passEncoder);
boundaryPressureProgram.dispatch(passEncoder); // boundary conditions
}
// Subtract the pressure from the velocity field
gradientSubtractProgram.dispatch(passEncoder);
clearPressureProgram.dispatch(passEncoder);
// Compute & apply vorticity confinment
vorticityProgram.dispatch(passEncoder);
vorticityConfinmentProgram.dispatch(passEncoder);
// Advect the dye through the velocity field
advectDyeProgram.dispatch(passEncoder);
}
let lastFrame = performance.now();
// Render loop
async function step ( ) {
requestAnimationFrame(step);
// Update time
const now = performance.now();
settings.dt =
Math .min( 1 / 60 , (now - lastFrame) / 1000 ) * settings.sim_speed;
settings.time += settings.dt;
lastFrame = now;
// Update uniforms
Object .values(globalUniforms).forEach( ( u ) => u.update(device.queue));
// Update custom uniform
if (mouseInfos.current) {
let dx = mouseInfos.last ? mouseInfos.current[ 0 ] - mouseInfos.last[ 0 ] : 0 ;
let dy = mouseInfos.last ? mouseInfos.current[ 1 ] - mouseInfos.last[ 1 ] : 0 ;
const isMobile = "ontouchstart" in window || navigator.maxTouchPoints > 0 ;
if (isMobile) {
const touchStrengthMultiplier = 0.2 ;
dx *= touchStrengthMultiplier;
dy *= touchStrengthMultiplier;
}
mouseInfos.velocity = [dx, dy];
mouse.update(device.queue, [
...mouseInfos.current,
...mouseInfos.velocity
]);
mouseInfos.last = [...mouseInfos.current];
}
// Compute fluid
const commandEncoder = device.createCommandEncoder();
const passEncoder = commandEncoder.beginComputePass();
dispatchComputePipeline(passEncoder);
passEncoder.end();
velocity0.copyTo(velocity, commandEncoder);
pressure0.copyTo(pressure, commandEncoder);
dye.copyTo(renderProgram.buffer, commandEncoder);
// Draw fluid
renderProgram.dispatch(commandEncoder);
// Send commands to the GPU
const gpuCommands = commandEncoder.finish();
device.queue.submit([gpuCommands]);
}
step();
}
main();
