🧠 Description

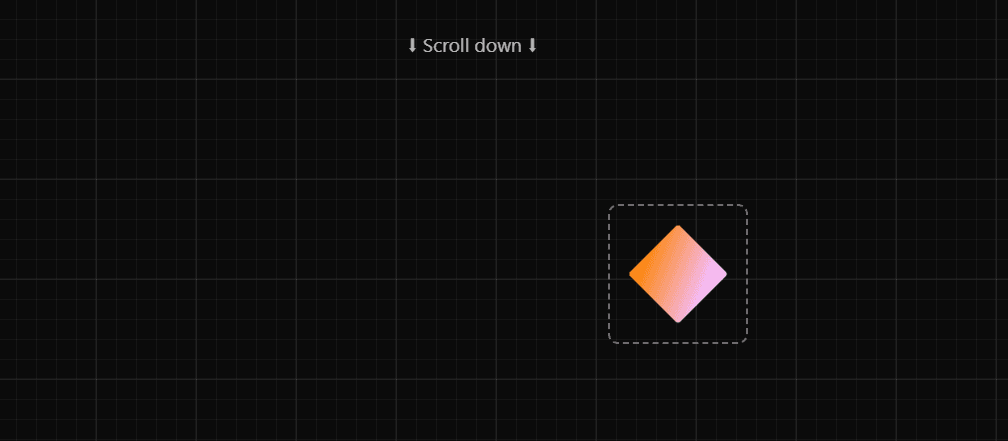

This project showcases an elegant scroll-triggered animation powered by GSAP (GreenSock Animation Platform) and its MotionPathPlugin.

The animation allows an element to smoothly travel along a custom motion path defined by multiple waypoint markers positioned throughout the page.

As users scroll down the page, the animated element follows the motion path in real-time, creating a seamless visual connection between scroll progress and element movement.

The design uses GSAP's ScrollTrigger to synchronize the animation with scroll position and MotionPathPlugin to calculate smooth curves connecting all waypoints.

Perfect for interactive storytelling, guided tours, and creative scroll experiences.

💻 HTML Code

1<!DOCTYPE html>
2<html lang="en">
3<head>
4  <meta charset="UTF-8" />
5  <title>GSAP Scroll Motion Path</title>
6  <meta name="viewport" content="width=device-width, initial-scale=1.0" />
7
8  <!-- GSAP CDN -->
9  <script src="https://unpkg.com/gsap@3/dist/gsap.min.js"></script>
10  <script src="https://unpkg.com/gsap@3/dist/ScrollTrigger.min.js"></script>
11  <script src="https://unpkg.com/gsap@3/dist/MotionPathPlugin.min.js"></script>
12
13  <style>
14    :root {
15      --color-surface50: rgba(255, 255, 255, 0.4);
16    }
17
18    body {
19      min-height: 100vh;
20      font-family: system-ui, sans-serif;
21      color: white;
22      background-color: #0b0b0b;
23      background-image:
24        linear-gradient(rgba(255, 255, 255, 0.05) 2px, transparent 2px),
25        linear-gradient(90deg, rgba(255, 255, 255, 0.05) 2px, transparent 2px),
26        linear-gradient(rgba(255, 255, 255, 0.04) 1px, transparent 1px),
27        linear-gradient(90deg, rgba(255, 255, 255, 0.04) 1px, transparent 1px);
28      background-size: 100px 100px, 100px 100px, 20px 20px, 20px 20px;
29      background-position: -2px -2px, -2px -2px, -1px -1px, -1px -1px;
30    }
31
32    * {
33      margin: 0;
34      padding: 0;
35      box-sizing: border-box;
36    }
37
38    .spacer {
39      height: 20vh;
40      display: flex;
41      justify-content: center;
42      align-items: center;
43      font-size: 1.2rem;
44      opacity: 0.7;
45    }
46
47    .main {
48      position: relative;
49      height: 300vh;
50    }
51
52    .container {
53      position: absolute;
54      width: 140px;
55      height: 140px;
56      border: 2px dashed var(--color-surface50);
57      border-radius: 10px;
58      display: flex;
59      justify-content: center;
60      align-items: center;
61    }
62
63    /* Start point */
64    .initial {
65      left: 60%;
66      top: 5%;
67    }
68
69    /* Down-the-page markers */
70    .second {
71      left: 10%;
72      top: 25%;
73    }
74
75    .third {
76      right: 10%;
77      top: 45%;
78    }
79
80    .fourth {
81      left: 20%;
82      top: 65%;
83    }
84
85    .fifth {
86      left: 60%;
87      top: 80%;
88    }
89
90    .sixth {
91      left: 15%;
92      top: 95%;
93    }
94
95    .marker {
96      width: 100px;
97      height: 100px;
98      border-radius: 10px;
99      background: rgba(255, 255, 255, 0.1);
100    }
101
102    .box {
103      width: 100px;
104      height: 100px;
105      z-index: 10;
106      border-radius: 10px;
107      background-image: url("https://assets.codepen.io/16327/flair-26.png");
108      background-size: contain;
109      background-repeat: no-repeat;
110      background-position: center;
111      background-color: transparent;
112    }
113  </style>
114</head>
115
116<body>
117
118  <div class="spacer">⬇ Scroll down ⬇</div>
119
120  <div class="main">
121    <div class="container initial">
122      <div class="box"></div>
123    </div>
124
125    <div class="container second">
126      <div class="marker"></div>
127    </div>
128
129    <div class="container third">
130      <div class="marker"></div>
131    </div>
132
133    <div class="container fourth">
134      <div class="marker"></div>
135    </div>
136
137    <div class="container fifth">
138      <div class="marker"></div>
139    </div>
140
141    <div class="container sixth">
142      <div class="marker"></div>
143    </div>
144  </div>
145
146  <div class="spacer final">⬆ End ⬆</div>
147
148  <script>
149    console.clear();
150    gsap.registerPlugin(ScrollTrigger, MotionPathPlugin);
151
152    let ctx;
153
154    function createTimeline() {
155      ctx && ctx.revert();
156
157      ctx = gsap.context(() => {
158        const box = document.querySelector(".box");
159        const boxStartRect = box.getBoundingClientRect();
160
161        // All containers except the first
162        const containers = gsap.utils.toArray(".container:not(.initial)");
163
164        // Collect motion points
165        const points = containers.map(container => {
166          const marker = container.querySelector(".marker") || container;
167          const r = marker.getBoundingClientRect();
168
169          return {
170            x: r.left + r.width / 2 - (boxStartRect.left + boxStartRect.width / 2),
171            y: r.top + r.height / 2 - (boxStartRect.top + boxStartRect.height / 2)
172          };
173        });
174
175        gsap.timeline({
176          scrollTrigger: {
177            trigger: ".container.initial",
178            start: "clamp(top center)",
179            endTrigger: ".final",
180            end: "clamp(top center)",
181            scrub: 1
182          }
183        }).to(".box", {
184          duration: 1,
185          ease: "none",
186          motionPath: {
187            path: points,
188            curviness: 1.5
189          }
190        });
191      });
192    }
193
194    createTimeline();
195    window.addEventListener("resize", createTimeline);
196  </script>
197
198</body>
199</html>

HTML Structure Explanation

The HTML is structured around a scrollable layout with motion path markers:

Key Elements:

.spacer - Top and bottom spacer sections to enable scrolling
.main - Container with 300vh height to provide scrollable area
.container.initial - Starting position containing the animated .box element
.container.second/third/fourth/fifth/sixth - Waypoint markers that define the motion path
.marker - Visual indicators for each waypoint
.box - The element that will animate along the motion path

The layout uses absolute positioning to place markers at strategic locations throughout the scrollable area.

GSAP plugins (ScrollTrigger and MotionPathPlugin) are loaded via CDN for animation functionality.

🎨 CSS Code

1:root {
2  --color-surface50: rgba(255, 255, 255, 0.4);
3}
4
5body {
6  min-height: 100vh;
7  font-family: system-ui, sans-serif;
8  color: white;
9  background-color: #0b0b0b;
10  background-image:
11    linear-gradient(rgba(255, 255, 255, 0.05) 2px, transparent 2px),
12    linear-gradient(90deg, rgba(255, 255, 255, 0.05) 2px, transparent 2px),
13    linear-gradient(rgba(255, 255, 255, 0.04) 1px, transparent 1px),
14    linear-gradient(90deg, rgba(255, 255, 255, 0.04) 1px, transparent 1px);
15  background-size: 100px 100px, 100px 100px, 20px 20px, 20px 20px;
16  background-position: -2px -2px, -2px -2px, -1px -1px, -1px -1px;
17}
18
19* {
20  margin: 0;
21  padding: 0;
22  box-sizing: border-box;
23}
24
25.spacer {
26  height: 20vh;
27  display: flex;
28  justify-content: center;
29  align-items: center;
30  font-size: 1.2rem;
31  opacity: 0.7;
32}
33
34.main {
35  position: relative;
36  height: 300vh;
37}
38
39.container {
40  position: absolute;
41  width: 140px;
42  height: 140px;
43  border: 2px dashed var(--color-surface50);
44  border-radius: 10px;
45  display: flex;
46  justify-content: center;
47  align-items: center;
48}
49
50/* Start point */
51.initial {
52  left: 60%;
53  top: 5%;
54}
55
56/* Down-the-page markers */
57.second {
58  left: 10%;
59  top: 25%;
60}
61
62.third {
63  right: 10%;
64  top: 45%;
65}
66
67.fourth {
68  left: 20%;
69  top: 65%;
70}
71
72.fifth {
73  left: 60%;
74  top: 80%;
75}
76
77.sixth {
78  left: 15%;
79  top: 95%;
80}
81
82.marker {
83  width: 100px;
84  height: 100px;
85  border-radius: 10px;
86  background: rgba(255, 255, 255, 0.1);
87}
88
89.box {
90  width: 100px;
91  height: 100px;
92  z-index: 10;
93  border-radius: 10px;
94  background-image: url("https://assets.codepen.io/16327/flair-26.png");
95  background-size: contain;
96  background-repeat: no-repeat;
97  background-position: center;
98  background-color: transparent;
99}

CSS Breakdown

Grid Background

Multiple layered gradients create a subtle grid pattern for visual interest.

Custom CSS variables store reusable color values.

Responsive Layout

Flexbox centers spacer content for visual cues.

Absolute positioning allows precise marker placement.

Visual Indicators

Dashed borders on .container elements show waypoint locations.

Subtle opacity values (0.1, 0.4, 0.7) create depth perception.

Animated Element Styling

.box uses background-image for visual representation.

Border-radius creates rounded corners for polish.

Z-index ensures the animated element stays above markers.

Spacer Sections

20vh height provides visual breathing room and scrollable space.

The grid background fills the entire viewport for continuity.

⚙️ JavaScript Code

1console.clear();
2gsap.registerPlugin(ScrollTrigger, MotionPathPlugin);
3
4let ctx;
5
6function createTimeline() {
7  ctx && ctx.revert();
8
9  ctx = gsap.context(() => {
10    const box = document.querySelector(".box");
11    const boxStartRect = box.getBoundingClientRect();
12
13    // All containers except the first
14    const containers = gsap.utils.toArray(".container:not(.initial)");
15
16    // Collect motion points
17    const points = containers.map(container => {
18      const marker = container.querySelector(".marker") || container;
19      const r = marker.getBoundingClientRect();
20
21      return {
22        x: r.left + r.width / 2 - (boxStartRect.left + boxStartRect.width / 2),
23        y: r.top + r.height / 2 - (boxStartRect.top + boxStartRect.height / 2)
24      };
25    });
26
27    gsap.timeline({
28      scrollTrigger: {
29        trigger: ".container.initial",
30        start: "clamp(top center)",
31        endTrigger: ".final",
32        end: "clamp(top center)",
33        scrub: 1
34      }
35    }).to(".box", {
36      duration: 1,
37      ease: "none",
38      motionPath: {
39        path: points,
40        curviness: 1.5
41      }
42    });
43  });
44}
45
46createTimeline();
47window.addEventListener("resize", createTimeline);

JavaScript Breakdown

GSAP Plugin Registration

gsap.registerPlugin(ScrollTrigger, MotionPathPlugin) - Enables scroll-triggered animations and motion path calculations.

Context Management

gsap.context() - Creates a scoped context for animations, allowing proper cleanup with ctx.revert().

Prevents memory leaks by reverting animations on resize or page updates.

Element Selection & Position Calculation

Retrieves the animated .box element and calculates its viewport position.

Selects all waypoint .container elements except the initial one.

Motion Points Array

Dynamically calculates relative positions of each waypoint using getBoundingClientRect().

Converts absolute viewport coordinates to relative coordinates (offset from box's starting position).

The points array stores x, y coordinates for each waypoint the element will visit.

ScrollTrigger Configuration

trigger: ".container.initial" - Animation starts when initial container enters viewport.

start: "clamp(top center)" - Prevents over-scrolling; clamps to visible area.

endTrigger: ".final" - Animation ends when final spacer section is reached.

scrub: 1 - Directly syncs animation progress with scroll position (1 = 1 second delay).

MotionPath Animation

motionPath: { path: points, curviness: 1.5 } - Animates the box along the calculated path.

curviness: 1.5 - Smoothness of curve (0 = straight lines, higher = more curved).

ease: "none" - Linear easing ensures consistent motion tied to scroll speed.

Responsive Behavior

window.addEventListener("resize", createTimeline) - Recalculates waypoints on window resize.

Ensures motion path stays accurate as viewport dimensions change.

The timeline automatically updates to track new marker positions.

This combination creates a smooth, synchronized scroll experience where the element follows a perfectly curved path through all waypoints as users scroll the page.

GSAP Scroll Motion Path Animation
