Animated Hourglass Preloader Using Pure SVG & CSS
Component

Animated Hourglass Preloader Using Pure SVG & CSS

CodewithLord
December 20, 2025

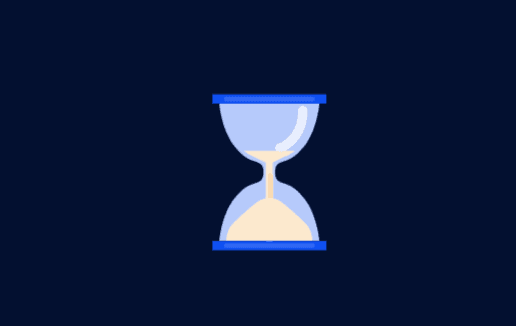

A visually rich hourglass preloader built using pure SVG and CSS animations. Features sand flow simulation, glass flipping motion, circular progress strokes, glare effects, and theme-aware color handling.

Description


This project showcases an animated hourglass preloader created entirely with SVG and CSS, without any JavaScript.
The animation simulates realistic sand flow, glass flipping, glare highlights, and circular motion strokes—making it ideal for loading screens, splash screens, and creative UI transitions.

Key highlights:


  • Pure SVG-based vector animation
  • CSS-driven timing and easing
  • Sand grain, mound, and drop simulation
  • Rotating circular motion indicators
  • Automatic dark/light theme adaptation
  • Scalable and resolution-independent design

The animation loops seamlessly and is optimized for modern browsers.


HTML

1<!DOCTYPE html>
2<html lang="en" >
3<head>
4  <meta charset="UTF-8">
5  <title>Hourglass Preloader | @coding.stella</title>
6  <meta name="viewport" content="width=device-width, initial-scale=1, viewport-fit=cover"><link rel="stylesheet" href="./style.css">
7
8</head>
9<body>
10	<svg
11	class="hourglass"
12	viewBox="0 0 56 56"
13	width="56px"
14	height="56px"
15	role="img"
16	aria-label="Hourglass being flipped clockwise and circled by three white curves fading in and out"
17  >
18	<clipPath id="sand-mound-top">
19	  <path
20		class="hourglass__sand-mound-top"
21		d="M 14.613 13.087 C 15.814 12.059 19.3 8.039 20.3 6.539 C 21.5 4.789 21.5 2.039 21.5 2.039 L 3 2.039 C 3 2.039 3 4.789 4.2 6.539 C 5.2 8.039 8.686 12.059 9.887 13.087 C 11 14.039 12.25 14.039 12.25 14.039 C 12.25 14.039 13.5 14.039 14.613 13.087 Z"
22	  />
23	</clipPath>
24	<clipPath id="sand-mound-bottom">
25	  <path
26		class="hourglass__sand-mound-bottom"
27		d="M 14.613 20.452 C 15.814 21.48 19.3 25.5 20.3 27 C 21.5 28.75 21.5 31.5 21.5 31.5 L 3 31.5 C 3 31.5 3 28.75 4.2 27 C 5.2 25.5 8.686 21.48 9.887 20.452 C 11 19.5 12.25 19.5 12.25 19.5 C 12.25 19.5 13.5 19.5 14.613 20.452 Z"
28	  />
29	</clipPath>
30	<g transform="translate(2,2)">
31	  <g
32		fill="none"
33		stroke="hsl(0,0%,100%)"
34		stroke-dasharray="153.94 153.94"
35		stroke-dashoffset="153.94"
36		stroke-linecap="round"
37		transform="rotate(-90,26,26)"
38	  >
39		<circle
40		  class="hourglass__motion-thick"
41		  stroke-width="2.5"
42		  cx="26"
43		  cy="26"
44		  r="24.5"
45		  transform="rotate(0,26,26)"
46		/>
47		<circle
48		  class="hourglass__motion-medium"
49		  stroke-width="1.75"
50		  cx="26"
51		  cy="26"
52		  r="24.5"
53		  transform="rotate(90,26,26)"
54		/>
55		<circle
56		  class="hourglass__motion-thin"
57		  stroke-width="1"
58		  cx="26"
59		  cy="26"
60		  r="24.5"
61		  transform="rotate(180,26,26)"
62		/>
63	  </g>
64	  <g class="hourglass__model" transform="translate(13.75,9.25)">
65		<!-- glass -->
66		<path
67		  fill="hsl(var(--hue),90%,85%)"
68		  d="M 1.5 2 L 23 2 C 23 2 22.5 8.5 19 12 C 16 15.5 13.5 13.5 13.5 16.75 C 13.5 20 16 18 19 21.5 C 22.5 25 23 31.5 23 31.5 L 1.5 31.5 C 1.5 31.5 2 25 5.5 21.5 C 8.5 18 11 20 11 16.75 C 11 13.5 8.5 15.5 5.5 12 C 2 8.5 1.5 2 1.5 2 Z"
69		/>
70		<!-- sand -->
71		<g stroke="hsl(35,90%,90%)" stroke-linecap="round">
72		  <line
73			class="hourglass__sand-grain-left"
74			stroke-width="1"
75			stroke-dasharray="0.25 33.75"
76			x1="12"
77			y1="15.75"
78			x2="12"
79			y2="20.75"
80		  />
81		  <line
82			class="hourglass__sand-grain-right"
83			stroke-width="1"
84			stroke-dasharray="0.25 33.75"
85			x1="12.5"
86			y1="16.75"
87			x2="12.5"
88			y2="21.75"
89		  />
90		  <line
91			class="hourglass__sand-drop"
92			stroke-width="1"
93			stroke-dasharray="0.5 107.5"
94			x1="12.25"
95			y1="18"
96			x2="12.25"
97			y2="31.5"
98		  />
99		  <line
100			class="hourglass__sand-fill"
101			stroke-width="1.5"
102			stroke-dasharray="54 54"
103			x1="12.25"
104			y1="14.75"
105			x2="12.25"
106			y2="31.5"
107		  />
108		  <line
109			class="hourglass__sand-line-left"
110			stroke="hsl(35,90%,83%)"
111			stroke-width="1"
112			stroke-dasharray="1 107"
113			x1="12"
114			y1="16"
115			x2="12"
116			y2="31.5"
117		  />
118		  <line
119			class="hourglass__sand-line-right"
120			stroke="hsl(35,90%,83%)"
121			stroke-width="1"
122			stroke-dasharray="12 96"
123			x1="12.5"
124			y1="16"
125			x2="12.5"
126			y2="31.5"
127		  />
128		  <!-- mounds -->
129		  <g fill="hsl(35,90%,90%)" stroke-width="0">
130			<path
131			  clip-path="url(#sand-mound-top)"
132			  d="M 12.25 15 L 15.392 13.486 C 21.737 11.168 22.5 2 22.5 2 L 2 2.013 C 2 2.013 2.753 11.046 9.009 13.438 L 12.25 15 Z"
133			/>
134			<path
135			  clip-path="url(#sand-mound-bottom)"
136			  d="M 12.25 18.5 L 15.392 20.014 C 21.737 22.332 22.5 31.5 22.5 31.5 L 2 31.487 C 2 31.487 2.753 22.454 9.009 20.062 Z"
137			/>
138		  </g>
139		</g>
140		<!-- glass glare -->
141		<g fill="none" opacity="0.7" stroke-linecap="round" stroke-width="2">
142		  <path
143			class="hourglass__glare-top"
144			stroke="hsl(0,0%,100%)"
145			d="M 19.437 3.421 C 19.437 3.421 19.671 6.454 17.914 8.846 C 16.157 11.238 14.5 11.5 14.5 11.5"
146		  />
147		  <path
148			class="hourglass__glare-bottom"
149			stroke="hsla(0,0%,100%,0)"
150			d="M 19.437 3.421 C 19.437 3.421 19.671 6.454 17.914 8.846 C 16.157 11.238 14.5 11.5 14.5 11.5"
151			transform="rotate(180,12.25,16.75)"
152		  />
153		</g>
154		<!-- caps -->
155		<rect fill="hsl(var(--hue),90%,50%)" width="24.5" height="2" />
156		<rect
157		  fill="hsl(var(--hue),90%,57.5%)"
158		  rx="0.5"
159		  ry="0.5"
160		  x="2.5"
161		  y="0.5"
162		  width="19.5"
163		  height="1"
164		/>
165		<rect fill="hsl(var(--hue),90%,50%)" y="31.5" width="24.5" height="2" />
166		<rect
167		  fill="hsl(var(--hue),90%,57.5%)"
168		  rx="0.5"
169		  ry="0.5"
170		  x="2.5"
171		  y="32"
172		  width="19.5"
173		  height="1"
174		/>
175	  </g>
176	</g>
177  </svg>
178
179</body>
180</html>

🎨 CSS Code


1* {
2  border: 0;
3  box-sizing: border-box;
4  margin: 0;
5  padding: 0;
6}
7
8:root {
9  --hue: 223;
10  --bg: hsl(var(--hue), 90%, 70%);
11  --fg: hsl(var(--hue), 90%, 10%);
12  --primary: hsl(var(--hue), 90%, 50%);
13  --trans-dur: 0.3s;
14  font-size: clamp(1rem, 0.95rem + 0.25vw, 1.25rem);
15}
16
17body {
18  background-color: var(--bg);
19  color: var(--fg);
20  display: flex;
21  font: 1em/1.5 sans-serif;
22  height: 100vh;
23  transition:
24    background-color var(--trans-dur),
25    color var(--trans-dur);
26}
27
28.hourglass {
29  --dur: 2s;
30  display: block;
31  margin: auto;
32  width: 14em;
33  height: auto;
34}
35.hourglass__glare-top,
36.hourglass__glare-bottom,
37.hourglass__model,
38.hourglass__motion-thick,
39.hourglass__motion-medium,
40.hourglass__motion-thin,
41.hourglass__sand-drop,
42.hourglass__sand-fill,
43.hourglass__sand-grain-left,
44.hourglass__sand-grain-right,
45.hourglass__sand-line-left,
46.hourglass__sand-line-right,
47.hourglass__sand-mound-top,
48.hourglass__sand-mound-bottom {
49  animation-duration: var(--dur);
50  animation-timing-function: cubic-bezier(0.83, 0, 0.17, 1);
51  animation-iteration-count: infinite;
52}
53.hourglass__glare-top {
54  animation-name: glare-top;
55}
56.hourglass__glare-bottom {
57  animation-name: glare-bottom;
58}
59.hourglass__model {
60  animation-name: hourglass-flip;
61  transform-origin: 12.25px 16.75px;
62}
63.hourglass__motion-thick,
64.hourglass__motion-medium,
65.hourglass__motion-thin {
66  transform-origin: 26px 26px;
67}
68.hourglass__motion-thick {
69  animation-name: motion-thick;
70}
71.hourglass__motion-medium {
72  animation-name: motion-medium;
73}
74.hourglass__motion-thin {
75  animation-name: motion-thin;
76}
77.hourglass__sand-drop {
78  animation-name: sand-drop;
79}
80.hourglass__sand-fill {
81  animation-name: sand-fill;
82}
83.hourglass__sand-grain-left {
84  animation-name: sand-grain-left;
85}
86.hourglass__sand-grain-right {
87  animation-name: sand-grain-right;
88}
89.hourglass__sand-line-left {
90  animation-name: sand-line-left;
91}
92.hourglass__sand-line-right {
93  animation-name: sand-line-right;
94}
95.hourglass__sand-mound-top {
96  animation-name: sand-mound-top;
97}
98.hourglass__sand-mound-bottom {
99  animation-name: sand-mound-bottom;
100  transform-origin: 12.25px 31.5px;
101}
102
103/* Dark theme */
104@media (prefers-color-scheme: dark) {
105  :root {
106    --bg: hsl(var(--hue), 90%, 10%);
107    --fg: hsl(var(--hue), 90%, 90%);
108  }
109}
110/* Animation */
111@keyframes hourglass-flip {
112  from {
113    transform: translate(13.75px, 9.25px) rotate(-180deg);
114  }
115  24%,
116  to {
117    transform: translate(13.75px, 9.25px) rotate(0);
118  }
119}
120@keyframes glare-top {
121  from {
122    stroke: rgba(255, 255, 255, 0);
123  }
124  24%,
125  to {
126    stroke: white;
127  }
128}
129@keyframes glare-bottom {
130  from {
131    stroke: white;
132  }
133  24%,
134  to {
135    stroke: rgba(255, 255, 255, 0);
136  }
137}
138@keyframes motion-thick {
139  from {
140    animation-timing-function: cubic-bezier(0.33, 0, 0.67, 0);
141    stroke: rgba(255, 255, 255, 0);
142    stroke-dashoffset: 153.94;
143    transform: rotate(0.67turn);
144  }
145  20% {
146    animation-timing-function: cubic-bezier(0.33, 1, 0.67, 1);
147    stroke: white;
148    stroke-dashoffset: 141.11;
149    transform: rotate(1turn);
150  }
151  40%,
152  to {
153    stroke: rgba(255, 255, 255, 0);
154    stroke-dashoffset: 153.94;
155    transform: rotate(1.33turn);
156  }
157}
158@keyframes motion-medium {
159  from,
160  8% {
161    animation-timing-function: cubic-bezier(0.33, 0, 0.67, 0);
162    stroke: rgba(255, 255, 255, 0);
163    stroke-dashoffset: 153.94;
164    transform: rotate(0.5turn);
165  }
166  20% {
167    animation-timing-function: cubic-bezier(0.33, 1, 0.67, 1);
168    stroke: white;
169    stroke-dashoffset: 147.53;
170    transform: rotate(0.83turn);
171  }
172  32%,
173  to {
174    stroke: rgba(255, 255, 255, 0);
175    stroke-dashoffset: 153.94;
176    transform: rotate(1.17turn);
177  }
178}
179@keyframes motion-thin {
180  from,
181  4% {
182    animation-timing-function: cubic-bezier(0.33, 0, 0.67, 0);
183    stroke: rgba(255, 255, 255, 0);
184    stroke-dashoffset: 153.94;
185    transform: rotate(0.33turn);
186  }
187  24% {
188    animation-timing-function: cubic-bezier(0.33, 1, 0.67, 1);
189    stroke: white;
190    stroke-dashoffset: 134.7;
191    transform: rotate(0.67turn);
192  }
193  44%,
194  to {
195    stroke: rgba(255, 255, 255, 0);
196    stroke-dashoffset: 153.94;
197    transform: rotate(1turn);
198  }
199}
200@keyframes sand-drop {
201  from,
202  10% {
203    animation-timing-function: cubic-bezier(0.12, 0, 0.39, 0);
204    stroke-dashoffset: 1;
205  }
206  70%,
207  to {
208    stroke-dashoffset: -107;
209  }
210}
211@keyframes sand-fill {
212  from,
213  10% {
214    animation-timing-function: cubic-bezier(0.12, 0, 0.39, 0);
215    stroke-dashoffset: 55;
216  }
217  70%,
218  to {
219    stroke-dashoffset: -54;
220  }
221}
222@keyframes sand-grain-left {
223  from,
224  10% {
225    animation-timing-function: cubic-bezier(0.12, 0, 0.39, 0);
226    stroke-dashoffset: 29;
227  }
228  70%,
229  to {
230    stroke-dashoffset: -22;
231  }
232}
233@keyframes sand-grain-right {
234  from,
235  10% {
236    animation-timing-function: cubic-bezier(0.12, 0, 0.39, 0);
237    stroke-dashoffset: 27;
238  }
239  70%,
240  to {
241    stroke-dashoffset: -24;
242  }
243}
244@keyframes sand-line-left {
245  from,
246  10% {
247    animation-timing-function: cubic-bezier(0.12, 0, 0.39, 0);
248    stroke-dashoffset: 53;
249  }
250  70%,
251  to {
252    stroke-dashoffset: -55;
253  }
254}
255@keyframes sand-line-right {
256  from,
257  10% {
258    animation-timing-function: cubic-bezier(0.12, 0, 0.39, 0);
259    stroke-dashoffset: 14;
260  }
261  70%,
262  to {
263    stroke-dashoffset: -24.5;
264  }
265}
266@keyframes sand-mound-top {
267  from,
268  10% {
269    animation-timing-function: linear;
270    transform: translate(0, 0);
271  }
272  15% {
273    animation-timing-function: cubic-bezier(0.12, 0, 0.39, 0);
274    transform: translate(0, 1.5px);
275  }
276  51%,
277  to {
278    transform: translate(0, 13px);
279  }
280}
281@keyframes sand-mound-bottom {
282  from,
283  31% {
284    animation-timing-function: cubic-bezier(0.61, 1, 0.88, 1);
285    transform: scale(1, 0);
286  }
287  56%,
288  to {
289    transform: scale(1, 1);
290  }
291}

How It Works


  1. SVG as the Animation Engine

The entire loader is vector-based

Shapes, sand, and strokes are individual SVG elements

Clip paths simulate sand mounds

  1. CSS-Only Animation Logic

stroke-dasharray and stroke-dashoffset animate sand flow

Rotation simulates flipping of the hourglass

Cubic-bezier easing creates natural motion

  1. Sand Simulation

Falling sand grains use dashed strokes

Sand fill lines move downward

Top mound shrinks while bottom mound grows

  1. Motion Feedback

Three rotating circular strokes act as progress indicators

Different stroke widths create depth

Key Features


⏳ Pure SVG + CSS (no JavaScript)

🎨 Theme-aware color variables

🔁 Seamless infinite loop

📐 Fully scalable & responsive

🌙 Dark mode support

⚡ Lightweight and performant

Use Cases

Website preloaders

App splash screens

Portfolio micro-interactions

Creative UI loaders

Modern SaaS loading states

Love this component?

Explore more components and build amazing UIs.

View All Components
