Description

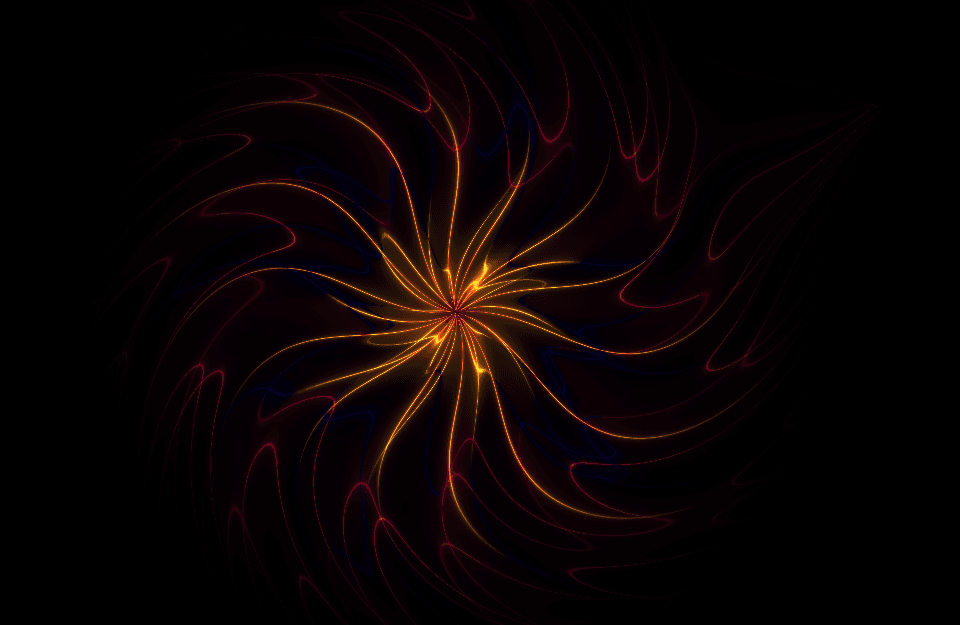

The animation uses GLSL fragment shaders to create dynamic, flame-like spirals that react to mouse movement. The system relies purely on WebGL, GLSL, and JavaScript, without any HTML elements included in this file.

Vertex Shader

1attribute vec2 a_position;
2void main() {
3    gl_Position = vec4(a_position, 0.0, 1.0);
4}

Purpose:

Defines a fullscreen quad by passing raw vertex positions directly to clip space.
No transformations are applied; fragment shader does all the heavy lifting.

Fire Color Palette Function (GLSL)

1vec3 palette_fire(float t, float factor) {
2    vec3 a = vec3(0.5, 0.1, 0.0);
3    vec3 b = vec3(0.6, 0.3, 0.1);
4    vec3 c = vec3(1.0, 1.0, 0.0);
5    vec3 d = vec3(0.8, 0.7, 0.2);
6
7    a += 0.1 * sin(vec3(0.1, 0.2, 0.3) * factor);
8    b += 0.2 * cos(vec3(0.2, 0.3, 0.1) * factor);
9
10    return a + b * cos(6.28318 * (c * t + d));
11}

Purpose:

Generates fiery tones using oscillating sine/cosine combinations.
Creates heat variation effects based on distance and time.

Fragment Shader Core Logic

1vec2 st = (gl_FragCoord.xy / u_resolution.xy) * 2.0 - 1.0;
2st.x *= u_resolution.x/u_resolution.y;

Normalizes pixel coordinates to –1 to 1 range.
Adjusts aspect ratio to prevent stretching.

1vec2 mouse_vec = st - mouse_st;
2float mouse_dist = length(mouse_vec);
3float mouse_push = smoothstep(0.7, 0.0, mouse_dist) * 0.5;

Computes mouse attraction force.
Creates a warping displacement around the mouse pointer.

1float twist = 0.5 * sin(R_global * 3.0 - u_time * 0.4);
2st *= mat2(cos(twist), sin(twist), -sin(twist), cos(twist));

Applies a time-based twisting field.
Produces swirling, spiral-like distortion.

Multi‑Layer Spiral Loop

1for (float i = 1.0; i < 6.0; i++) {
2    float num_arms = 4.0 + 3.0 * sin(u_time * 0.1 + i);
3    ...
4    vec3 pal = palette_fire(...);
5    color += pal * w;
6}

Purpose:

Runs multiple layers of spirals, each rotating at different speeds.
Adds depth, glow, and fire-like complexity.
Uses exponential and sinusoidal warping for dynamic shapes.

Final Output:

1gl_FragColor = vec4(color, 1.0);

JavaScript Logic

Shader Compilation

1createShader(gl, type, source)

Compiles GLSL vertex and fragment shaders.

Program Linking

1createProgram(gl, vertexShader, fragmentShader)

Links both shaders into a single GPU program.

Full Screen Quad Setup

1const positions = [-1, -1, 1, -1, -1, 1, 1, 1];

Creates square covering entire screen.

Uniform Updates

1gl.uniform2f(resolutionLocation, canvas.width, canvas.height);
2gl.uniform1f(timeLocation, time * 0.001);
3gl.uniform2f(mouseLocation, mouseX, mouseY);

Continuously feeds time, resolution, and mouse data to GPU.

Render Loop

1requestAnimationFrame(render);

Redraws animation every frame.
Produces smooth real-time animation at 60fps.

Canvas Resize System

Adjusts drawing buffer for high DPI displays.
Keeps shader output crisp on all screen sizes.

Summary

This WebGL fire spiral animation combines:

GLSL shaders for visual output
Mouse interaction for warp effects
Recursive spiral logic for complex fire patterns
High DPI adaptive rendering

The result is a high‑performance GPU-powered fire spiral that reacts fluidly to user input.

Full Code:

1<!DOCTYPE html>
2<html lang="en">
3
4  <head>
5    <meta charset="UTF-8">
6    <title>Interactive GLSL Shader Fire Spiral Animation in WebGL</title>
7
8
9  </head>
10
11  <body>
12  <style>
13body, html {
14    height: 100vh;
15    margin: 0;
16    overflow: hidden;
17    background-color: #000;
18}
19canvas {
20    display: block;
21}
22</style>
23<canvas id="glcanvas"></canvas>
24<script id="vertex-shader" type="x-shader/x-vertex">
25attribute vec2 a_position;
26void main() {
27    gl_Position = vec4(a_position, 0.0, 1.0);
28}
29</script>
30<script id="fragment-shader" type="x-shader/x-fragment">
31#ifdef GL_ES
32precision highp float;
33#endif
34uniform vec2 u_resolution;
35uniform vec2 u_mouse;
36uniform float u_time;
37vec3 palette_fire(float t, float factor) {
38    vec3 a = vec3(0.5, 0.1, 0.0);
39    vec3 b = vec3(0.6, 0.3, 0.1);
40    vec3 c = vec3(1.0, 1.0, 0.0);
41    vec3 d = vec3(0.8, 0.7, 0.2);
42
43    a += 0.1 * sin(vec3(0.1, 0.2, 0.3) * factor);
44    b += 0.2 * cos(vec3(0.2, 0.3, 0.1) * factor);
45
46    return a + b * cos(6.28318 * (c * t + d));
47}
48void main() {
49    vec2 st = (gl_FragCoord.xy / u_resolution.xy) * 2.0 - 1.0;
50    st.x *= u_resolution.x/u_resolution.y;
51    vec3 color = vec3(0.0);
52    vec2 mouse_st = vec2(u_mouse.x, u_resolution.y - u_mouse.y) / u_resolution.xy;
53    mouse_st = (mouse_st * 2.0 - 1.0) * vec2(1.0, -1.0);
54    mouse_st.x *= u_resolution.x / u_resolution.y;
55
56    vec2 mouse_vec = st - mouse_st;
57    float mouse_dist = length(mouse_vec);
58    float mouse_push = smoothstep(0.7, 0.0, mouse_dist) * 0.5;
59
60    if (u_mouse.x > 0.0) {
61        st += normalize(mouse_vec) * mouse_push;
62    }
63    float R_global = length(st);
64    float angle_global = atan(st.y, st.x);
65    float twist = 0.5 * sin(R_global * 3.0 - u_time * 0.4);
66    st *= mat2(cos(twist), sin(twist), -sin(twist), cos(twist));
67    for (float i = 1.0; i < 6.0; i++) {
68        vec2 st0 = st;
69        float sgn = 1.0 - 2.0 * mod(i, 2.0);
70
71        float t = u_time * 0.02 - float(i);
72        st0 *= mat2(cos(t), sin(t), -sin(t), cos(t));
73
74        float R = length(st0);
75        float d = R * i;
76        float angle = atan(st0.y, st0.x);
77        float num_arms = 4.0 + 3.0 * sin(u_time * 0.1 + i);
78        float angle_warped = angle * num_arms;
79        float dist_warp_factor = 1.0 + 0.3 * sin(angle * 12.0 + u_time * 0.5 - i);
80        float d_warped = d * dist_warp_factor;
81
82        vec3 pal = palette_fire(-exp((length(d_warped) * -0.9)), abs(d_warped) * 0.4);
83        float radial = exp(-R);
84        radial *= smoothstep(1.2, 0.5, R);
85        pal *= radial;
86        float phase = -(d_warped + sgn * angle_warped) + u_time * 0.3;
87
88        float v = sin(phase);
89        v = max(abs(v), 0.01);
90        float w = pow(0.02 / v, 0.8);
91        color += pal * w;
92    }
93    gl_FragColor = vec4(color, 1.0);
94}
95</script>
96<script>
97const canvas = document.getElementById('glcanvas');
98const gl = canvas.getContext('webgl');
99if (!gl) {
100    console.error("WebGL not supported, falling back on experimental-webgl");
101    gl = canvas.getContext("experimental-webgl");
102}
103if (!gl) {
104    alert("Your browser does not support WebGL");
105}
106function getShaderSource(id) {
107    return document.getElementById(id).textContent;
108}
109const vertexShaderSource = getShaderSource('vertex-shader');
110const fragmentShaderSource = getShaderSource('fragment-shader');
111function createShader(gl, type, source) {
112    const shader = gl.createShader(type);
113    gl.shaderSource(shader, source);
114    gl.compileShader(shader);
115    if (!gl.getShaderParameter(shader, gl.COMPILE_STATUS)) {
116        console.error('An error occurred compiling the shaders:', gl.getShaderInfoLog(shader));
117        gl.deleteShader(shader);
118        return null;
119    }
120    return shader;
121}
122function createProgram(gl, vertexShader, fragmentShader) {
123    const program = gl.createProgram();
124    gl.attachShader(program, vertexShader);
125    gl.attachShader(program, fragmentShader);
126    gl.linkProgram(program);
127    if (!gl.getProgramParameter(program, gl.LINK_STATUS)) {
128        console.error('Unable to initialize the shader program:', gl.getProgramInfoLog(program));
129        return null;
130    }
131    return program;
132}
133const vertexShader = createShader(gl, gl.VERTEX_SHADER, vertexShaderSource);
134const fragmentShader = createShader(gl, gl.FRAGMENT_SHADER, fragmentShaderSource);
135const program = createProgram(gl, vertexShader, fragmentShader);
136const positionBuffer = gl.createBuffer();
137gl.bindBuffer(gl.ARRAY_BUFFER, positionBuffer);
138const positions = [
139    -1.0, -1.0,
140     1.0, -1.0,
141    -1.0, 1.0,
142     1.0, 1.0,
143];
144gl.bufferData(gl.ARRAY_BUFFER, new Float32Array(positions), gl.STATIC_DRAW);
145const positionLocation = gl.getAttribLocation(program, 'a_position');
146gl.enableVertexAttribArray(positionLocation);
147gl.vertexAttribPointer(positionLocation, 2, gl.FLOAT, false, 0, 0);
148gl.useProgram(program);
149const resolutionLocation = gl.getUniformLocation(program, 'u_resolution');
150const timeLocation = gl.getUniformLocation(program, 'u_time');
151const mouseLocation = gl.getUniformLocation(program, 'u_mouse');
152let mouseX = -1.0;
153let mouseY = -1.0;
154
155let devicePixelRatio = Math.min(window.devicePixelRatio || 1, 2);
156window.addEventListener('mousemove', (e) => {
157    mouseX = e.clientX;
158    mouseY = e.clientY;
159});
160function render(time) {
161    gl.uniform2f(resolutionLocation, canvas.width, canvas.height);
162    gl.uniform1f(timeLocation, time * 0.001);
163    gl.uniform2f(mouseLocation, mouseX * devicePixelRatio, mouseY * devicePixelRatio);
164
165    gl.clearColor(0, 0, 0, 1);
166    gl.clear(gl.COLOR_BUFFER_BIT);
167
168    gl.drawArrays(gl.TRIANGLE_STRIP, 0, 4);
169
170    requestAnimationFrame(render);
171}
172function resize() {
173    devicePixelRatio = Math.min(window.devicePixelRatio || 1, 2);
174
175    canvas.width = Math.floor(window.innerWidth * devicePixelRatio);
176    canvas.height = Math.floor(window.innerHeight * devicePixelRatio);
177
178    gl.viewport(0, 0, gl.drawingBufferWidth, gl.drawingBufferHeight);
179
180    canvas.style.width = window.innerWidth + "px";
181    canvas.style.height = window.innerHeight + "px";
182}
183resize();
184window.addEventListener('resize', resize);
185requestAnimationFrame(render);
186</script>
187
188  </body>
189
190</html>
