🧠 Description

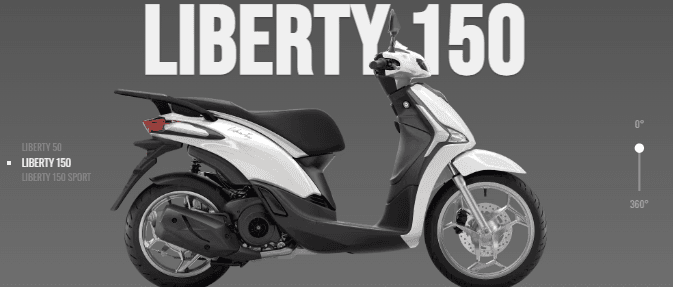

This interactive scooter product showcase demonstrates advanced scroll-driven animation techniques using GSAP (GreenSock Animation Platform) and ScrollTrigger plugin. The page creates an engaging, narrative-driven experience where scrolling reveals product details, specifications, and characteristics through coordinated animations and dynamic content transitions.

What Makes This Project Exceptional?

Visual Features:

Complex multi-timeline animation system
SVG masking with dynamic clipping paths
Product image that morphs and repositions during scroll
Staggered text animations (fade, scale, slide)
Specifications and characteristics panels reveal progressively
Smooth viewport pinning for controlled scrolling
Header transitions and background animations
Intro logo animations with parallax effects

Technical Innovation:

GSAP Timeline Management: 8 coordinated timelines working in sequence
ScrollTrigger Integration: Precise scroll-based animation control
Scrub Property: Smooth animation synchronization with scroll velocity
SVG Clipping: Dynamic mask path manipulation
Stagger Animations: Synchronized multi-element transitions
Programmatic Sequencing: Hierarchical animation control
Easing Functions: Sophisticated timing curves (expo.out, sine.out)

The Concept

Narrative-Driven Experience:

The animation tells a story as user scrolls:

Intro (0-700px): Welcome screen with logo and tagline
Product Introduction (700-1500px): Product name and model variants appear
Transition (1500-2500px): Product image scales and positions shift
Specifications (2500-3800px): Engine specs slide in from left
Characteristics (3800-4600px): Physical specs slide in from right
Outro (4600-5700px): Price and call-to-action button
Total Scroll Distance: 5700px of coordinated animations

Each section uses dedicated timelines synchronized to scroll position, creating a seamless, choreographed experience.

💻 Step 1: HTML Structure

Complete HTML Code

1<!DOCTYPE html>
2<html lang="en">
3
4<head>
5  <meta charset="UTF-8">
6  <meta name="viewport" content="width=device-width, initial-scale=1.0">
7  <title>Scooter Animation | Liberty 150 Product Showcase</title>
8  <meta name="description" content="Interactive GSAP ScrollTrigger animation showcasing the Piaggio Liberty 150 scooter with specifications and product details.">
9
10  <!-- Custom Stylesheet -->
11  <link rel="stylesheet" href="./style.css">
12</head>
13
14<body>
15
16  <!-- ====================================
17       MAIN CONTAINER & WRAPPER
18       ===================================== -->
19  <div class="container" id="container">
20
21    <div class="wrapper" id="wrapper">
22
23      <!-- ====================================
24           HEADER SECTION
25           ===================================== -->
26      <div class="header">
27        <!-- Filter Icon -->
28        <svg viewBox="0 0 24 24">
29          <line x1="12" y1="20" x2="12" y2="10"></line>
30          <line x1="18" y1="20" x2="18" y2="4"></line>
31          <line x1="6" y1="20" x2="6" y2="16"></line>
32        </svg>
33
34        <div>
35          <!-- Search Icon -->
36          <svg viewBox="0 0 24 24">
37            <circle cx="11" cy="11" r="8"></circle>
38            <line x1="21" y1="21" x2="16.65" y2="16.65"></line>
39          </svg>
40
41          <!-- Menu Grid Icon -->
42          <svg viewBox="0 0 24 24">
43            <rect x="3" y="3" width="7" height="7"></rect>
44            <rect x="14" y="3" width="7" height="7"></rect>
45            <rect x="14" y="14" width="7" height="7"></rect>
46            <rect x="3" y="14" width="7" height="7"></rect>
47          </svg>
48        </div>
49      </div>
50
51      <!-- ====================================
52           MAIN PANEL - CONTENT & ANIMATIONS
53           ===================================== -->
54      <div class="panel">
55
56        <!-- INTRO SECTION -->
57        <div class="intro" id="intro">
58          <!-- Brand Logo -->
59          <img id="logo" src="./Image/logo.png" alt="Piaggio logo">
60
61          <!-- Main Heading -->
62          <h1 id="intro-h1">Ready to Cruise</h1>
63
64          <!-- Tagline -->
65          <h3 id="intro-h3">Relax and enjoy the ride</h3>
66        </div>
67

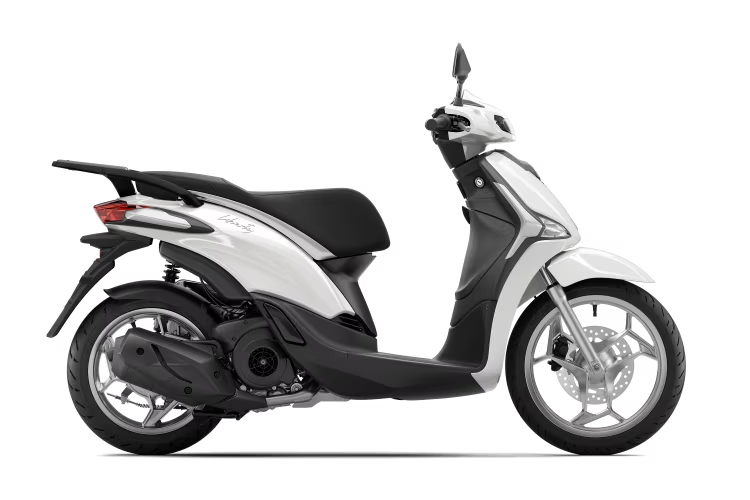

68        <!-- PRODUCT IMAGE (SCOOTER) -->
69        <!-- This element animates throughout the entire scroll experience -->
70        <img id="liberty" src="./Image/scooter.png" alt="Liberty 150 scooter">
71
72        <!-- PRODUCT NAME HEADING -->
73        <h1 id="panel-h1">Liberty 150</h1>
74
75        <!-- MODEL VARIANTS LIST -->
76        <ul class="models">
77          <li>Liberty 50</li>
78          <li>Liberty 150</li>
79          <li>Liberty 150 Sport</li>
80        </ul>
81
82        <!-- ROTATION INDICATOR (360° View) -->
83        <div class="rotator">
84          <p>0°</p>
85          <svg viewBox="0 0 10 30">
86            <path d="M5 5.663V40" fill="none" stroke="#999" stroke-width="1" />
87            <circle cx="5" cy="7" r="2.5" fill="#fff" />
88          </svg>
89          <p>360°</p>
90        </div>
91
92        <!-- ====================================
93             ENGINE SPECIFICATIONS SECTION
94             ===================================== -->
95        <div class="specs">
96          <h2>Engine</h2>
97
98          <!-- First Column of Engine Specs -->
99          <dl>
100            <dt>Bore x Stroke</dt>
101            <dd>58mm x 58.6mm</dd>
102
103            <dt>Clutch</dt>
104            <dd>Automatic centrifugal dry clutch</dd>
105
106            <dt>Consumption</dt>
107            <dd>36.8 Km/I</dd>
108
109            <dt>Cooling</dt>
110            <dd>Air</dd>
111
112            <dt>CO2 Emissions</dt>
113            <dd>65 g/Km</dd>
114
115            <dt>Distribution</dt>
116            <dd>SOHC, 3 valves</dd>
117
118            <dt>Engine</dt>
119            <dd>Single cylinder 4-stroke i-get</dd>
120          </dl>
121
122          <!-- Second Column of Engine Specs -->
123          <dl>
124            <dt>Engine Capacity</dt>
125            <dd>155cc</dd>
126
127            <dt>Fuel system</dt>
128            <dd>Electronic injection</dd>
129
130            <dt>Lubrication</dt>
131            <dd>Oil with wet sump</dd>
132
133            <dt>Max Power</dt>
134            <dd>12.9hp @ 7750 rpm</dd>
135
136            <dt>Max Torque</dt>
137            <dd>13 Nm @ 5250 rpm</dd>
138
139            <dt>Transmission</dt>
140            <dd>Automatic CVT</dd>
141
142            <dt>Starter</dt>
143            <dd>Electric</dd>
144          </dl>
145        </div>
146
147        <!-- ====================================
148             PHYSICAL CHARACTERISTICS SECTION
149             ===================================== -->
150        <div class="chars">
151          <h2>Characteristics</h2>
152
153          <!-- First Column of Characteristics -->
154          <dl>
155            <dt>Frame</dt>
156            <dd>High resistance steel</dd>
157
158            <dt>Front tyre</dt>
159            <dd>90/80 - 16"</dd>
160
161            <dt>Rear brake</dt>
162            <dd>140mm drum</dd>
163
164            <dt>Seat height</dt>
165            <dd>31.1" (790mm)</dd>
166
167            <dt>Front suspension</dt>
168            <dd>Hydraulic fork</dd>
169
170            <dt>Rear tyre</dt>
171            <dd>100/80 - 14"</dd>
172
173            <dt>ABS</dt>
174            <dd>Front ABS</dd>
175          </dl>
176
177          <!-- Second Column of Characteristics -->
178          <dl>
179            <dt>Fuel Tank</dt>
180            <dd>6 liters</dd>
181
182            <dt>Rear suspension</dt>
183            <dd>Hydraulic shock absorber</dd>
184
185            <dt>Front brake</dt>
186            <dd>Disc 240mm</dd>
187
188            <dt>Dimensions</dt>
189            <dd>76.5" × 27.1" × 52.7"</dd>
190
191            <dt>Emission</dt>
192            <dd>EPA / CARB</dd>
193          </dl>
194        </div>
195
196        <!-- ====================================
197             OUTRO/CALL-TO-ACTION SECTION
198             ===================================== -->
199        <div class="outro">
200          <h2>Piaggio Liberty 150</h2>
201          <p>$2999.00</p>
202          <button>Learn More</button>
203        </div>
204      </div>
205
206      <!-- ====================================
207           BACKGROUND LAYER
208           ===================================== -->
209      <!-- Gradient background with SVG clipping mask -->
210      <div class="bkg"></div>
211
212    </div>
213
214    <!-- ====================================
215         SVG CLIPPING MASK
216         ===================================== -->
217    <!-- Defines dynamic clip path that animates during scroll -->
218    <svg id="mask">
219      <defs>
220        <clipPath id="wrapMask">
221          <!-- Rectangle that expands/contracts during animation -->
222          <rect id="wrapWin" width="1000" height="800" />
223        </clipPath>
224      </defs>
225    </svg>
226
227  </div>
228
229  <!-- ====================================
230       EXTERNAL JAVASCRIPT LIBRARIES
231       ===================================== -->
232
233  <!-- GSAP Core Library (v3.12.2) -->
234  <script src="https://cdnjs.cloudflare.com/ajax/libs/gsap/3.12.2/gsap.min.js"></script>
235
236  <!-- GSAP ScrollTrigger Plugin (v3.12.2) -->
237  <!-- Enables scroll-driven animations -->
238  <script src="https://cdnjs.cloudflare.com/ajax/libs/gsap/3.12.2/ScrollTrigger.min.js"></script>
239
240  <!-- Custom Animation Script -->
241  <script src="./script.js"></script>
242
243</body>
244
245</html>

✅ Semantic Elements: Proper heading hierarchy, list structure ✅ ID/Class Naming: Clear, descriptive identifiers for JavaScript targeting ✅ Accessibility: Alt text for images, semantic HTML ✅ Performance: Minimal nested elements, optimized structure ✅ Organization: Logical grouping of related content ✅ Comments: Clear section demarcation with comments ✅ Mobile-Ready: Viewport meta tag for responsive design

🎨 Step 2: CSS – Layout, Styling & Positioning

Complete CSS Code

1/* ====================================
2   FONT IMPORTS & RESET
3   ==================================== */
4
5@import url("https://fonts.googleapis.com/css2?family=Bebas+Neue&family=Oswald&display=swap");
6
7/* Universal Reset */
8* {
9  margin: 0;
10  padding: 0;
11  box-sizing: border-box;
12}
13
14/* ====================================
15   BODY & GLOBAL STYLES
16   ==================================== */
17
18body {
19  height: 100vh;
20  width: 100vw;
21  font-family: "Oswald", sans-serif;
22  background-color: #ffffff;
23  background-image: url("/Image/bg.png");
24
25  /* Hide scrollbar (GSAP ScrollTrigger handles scroll) */
26  -ms-overflow-style: none;
27  scrollbar-width: none;
28}
29
30/* Webkit browsers (Chrome, Safari) */
31::-webkit-scrollbar {
32  width: 0;
33  height: 0;
34}
35
36/* ====================================
37   TYPOGRAPHY
38   ==================================== */
39
40h1,
41h2,
42h3 {
43  font-family: "Bebas Neue", sans-serif;
44  text-transform: uppercase;
45  color: #f0f0f0;
46  letter-spacing: 2px;
47  text-shadow: 0px 1px 3px rgba(0, 0, 0, 0.3);
48}
49
50ul {
51  list-style: none;
52}
53
54/* ====================================
55   CONTAINER & WRAPPER LAYOUT
56   ==================================== */
57
58.container {
59  width: 100%;
60  height: 100%;
61  display: grid;
62  place-items: center;
63}
64
65.wrapper {
66  width: 90%;
67  max-width: 900px;
68  height: 100%;
69  max-height: 700px;
70  overflow: hidden;
71  border-radius: 20px;
72  position: relative;
73  background: #f0f0f0;
74}
75
76/* ====================================
77   BACKGROUND LAYER WITH SVG CLIPPING
78   ==================================== */
79
80.bkg {
81  width: 100%;
82  height: 100%;
83  background: #a4a4a4;
84  background: linear-gradient(0deg, #797979, #494949 100%);
85  position: absolute;
86  top: 0;
87  left: 0;
88  z-index: 1;
89
90  /* Apply SVG clipping mask -->
91  /* Height of clip-path animates via #wrapWin rect -->
92  -webkit-clip-path: url("#wrapMask");
93  clip-path: url("#wrapMask");
94}
95
96/* ====================================
97   HEADER SECTION
98   ==================================== */
99
100.header {
101  position: absolute;
102  left: 0;
103  top: 0;
104  z-index: 4;
105  width: 100%;
106  padding: 1.5em;
107  display: grid;
108  grid-template-columns: 1fr 16%;
109}
110
111.header svg {
112  width: 18px;
113  stroke: #f0f0f0;
114  stroke-width: 2;
115  fill: none;
116  stroke-linecap: round;
117}
118
119/* Rotate filter icon 90 degrees -->
120.header svg:nth-child(1) {
121  transform: rotateZ(90deg);
122}
123
124/* Right-align search and menu icons -->
125.header div {
126  text-align: right;
127}
128
129.header div svg {
130  margin-left: 20px;
131}
132
133/* ====================================
134   PANEL - MAIN CONTENT AREA
135   ==================================== */
136
137.panel {
138  width: 100%;
139  height: 100%;
140  display: grid;
141  place-items: center;
142  position: relative;
143}
144
145/* ====================================
146   PRODUCT IMAGE (SCOOTER)
147   ==================================== */
148
149.panel img#liberty {
150  width: 95%;
151  position: absolute;
152  z-index: 10;
153  left: 50%;
154  bottom: -250px;  /* Positioned below viewport initially -->
155  transform: translateX(-50%);
156}
157
158/* ====================================
159   PRODUCT NAME HEADING
160   ==================================== */
161
162.panel h1#panel-h1 {
163  width: 100%;
164  text-align: center;
165  position: absolute;
166  z-index: 9;
167  top: 140px;
168  font-size: 8rem;
169  left: 50%;
170  transform: translateX(-50%);
171}
172
173/* ====================================
174   INTRO SECTION
175   ==================================== */
176
177.intro {
178  z-index: 6;
179  text-align: center;
180  transform: translateY(-60px);
181}
182
183.intro h1 {
184  font-size: 4rem;
185}
186
187.intro h3 {
188  font-size: 2.4rem;
189  margin-top: -16px;
190}
191
192.intro img {
193  width: 50px;
194  opacity: 0.6;
195}
196
197/* ====================================
198   MODEL VARIANTS LIST
199   ==================================== */
200
201.models {
202  position: absolute;
203  top: 50%;
204  left: 2em;
205  z-index: 11;
206}
207
208.models li {
209  text-transform: uppercase;
210  font-size: 0.8rem;
211  color: #8a8a8a;
212}
213
214/* Highlight active model -->
215.models li:nth-child(2) {
216  color: #f0f0f0;
217  font-size: 0.9rem;
218  list-style-type: square;
219}
220
221/* ====================================
222   360° ROTATION INDICATOR
223   ==================================== */
224
225.rotator {
226  position: absolute;
227  top: 45%;
228  right: 2em;
229  z-index: 12;
230}
231
232.rotator p {
233  text-align: center;
234  font-size: 0.8rem;
235  color: #a4a4a4;
236  text-transform: uppercase;
237  padding: 5px 0;
238}
239
240/* ====================================
241   SPECIFICATIONS & CHARACTERISTICS
242   ==================================== */
243
244.specs,
245.chars {
246  position: absolute;
247  top: 15%;
248  width: 50%;
249  z-index: 20;
250  padding: 1em;
251  display: grid;
252  grid-template-columns: 1fr 1fr;
253  grid-template-rows: 10% 1fr;
254}
255
256/* Section headings span both columns -->
257.specs h2,
258.chars h2 {
259  grid-column: 1/3;
260  grid-row: 1/2;
261  color: #4b4b4b;
262  text-shadow: none;
263}
264
265/* Definition lists fill grid cells -->
266.specs dl:nth-child(0),
267.chars dl:nth-child(0) {
268  grid-column: 1/2;
269  grid-row: 2/3;
270}
271
272.specs dl:nth-child(1),
273.chars dl:nth-child(1) {
274  grid-column: 2/3;
275  grid-row: 2/3;
276}
277
278/* Definition styling -->
279.specs dl dt,
280.chars dl dt {
281  text-transform: uppercase;
282  margin-bottom: 5px;
283}
284
285.specs dl dd,
286.chars dl dd {
287  margin-bottom: 10px;
288  font-size: 0.9rem;
289  color: #717171;
290}
291
292/* ====================================
293   OUTRO / CALL-TO-ACTION SECTION
294   ==================================== */
295
296.outro {
297  width: 100%;
298  position: absolute;
299  bottom: 0;
300  left: 50%;
301  transform: translateX(-50%);
302  z-index: 30;
303  text-align: center;
304  padding: 1em;
305}
306
307.outro h2 {
308  font-size: 3rem;
309}
310
311.outro p {
312  font-size: 1.7rem;
313  color: #f0f0f0;
314  text-shadow: 0px 1px 3px rgba(0, 0, 0, 0.3);
315}
316
317/* ====================================
318   BUTTON STYLING
319   ==================================== */
320
321.outro button {
322  margin: 20px 0;
323  border: 1px solid #9b9b9b;
324  background: #646464;
325  padding: 5px 10px;
326  outline: none;
327  cursor: pointer;
328  color: #d7d7d7;
329  font-size: 1.2rem;
330  font-family: "Bebas Neue", sans-serif;
331  transition: all 0.3s ease;
332}
333
334.outro button:hover {
335  background: #7a7a7a;
336  border-color: #d7d7d7;
337}
338
339/* ====================================
340   SVG MASK ELEMENT
341   ==================================== */
342
343#mask {
344  display: block;
345  position: absolute;
346  z-index: 40;
347}
348
349/* ====================================
350   FIREFOX-SPECIFIC FIX
351   ==================================== */
352
353@-moz-document url-prefix() {
354  .rotator svg {
355    width: 100%;
356    height: 60px;
357  }
358}

CSS Architecture Explanation

1. Grid-Based Layout

1.container {
2  width: 100%;
3  height: 100%;
4  display: grid;
5  place-items: center;
6}
7
8.wrapper {
9  max-width: 900px;
10  max-height: 700px;
11  position: relative;
12}

Purpose:

grid with place-items: center centers wrapper
Wrapper has fixed max dimensions for consistent animation
position: relative creates stacking context for absolute positioning

2. SVG Clipping Mask System

1.bkg {
2  clip-path: url("#wrapMask");
3}
4
5/* In HTML: <rect id="wrapWin" width="1000" height="800" /> -->

How It Works:

.bkg applies clip-path from SVG mask
#wrapWin rect height animates from 80 to 800
Gradient background clips to animated rectangle
Creates reveal/masking effect

JavaScript animates:

1gsap.to("#wrapWin", {
2  height: 800,  // Expands from 80
3  duration: 2,
4  scrollTrigger: { start: 300, end: 500 }
5})

3. Absolute Positioning Strategy

1.panel img#liberty {
2  position: absolute;
3  z-index: 10;
4  left: 50%;
5  bottom: -250px;  /* Below viewport initially -->
6  transform: translateX(-50%);
7}
8
9.intro {
10  z-index: 6;  /* Below product -->
11}
12
13.outro {
14  z-index: 30;  /* Above all -->
15}

Z-Index Hierarchy:

1: Background gradient
4: Header
6: Intro section
9: Panel heading
10: Product image
11: Model list
12: Rotator
20: Specs/Chars
30: Outro
40: SVG mask

Layout Result:

┌─────────────────┐
│   Engine (h2)   │  ← Spans 2 columns
├────────┬────────┤
│ Specs1 │ Specs2 │  ← Two-column specs
└────────┴────────┘

5. Typography & Color Hierarchy

1h1, h2, h3 {
2  font-family: "Bebas Neue", sans-serif;  /* Display font -->
3  color: #f0f0f0;                         /* Light on dark -->
4  text-shadow: 0px 1px 3px rgba(0, 0, 0, 0.3);
5}
6
7body {
8  font-family: "Oswald", sans-serif;  /* Body font -->
9}

Color Scheme:

#f0f0f0: Light headings (high contrast)
#717171: Body text (readable on light background)
#8a8a8a: Inactive labels
#4b4b4b: Section headings

⚙️ Step 3: JavaScript – GSAP Timeline Animation

Complete JavaScript Code & Explanation

1/* ====================================
2   GSAP SETUP & PLUGIN REGISTRATION
3   ==================================== */
4
5// Register ScrollTrigger plugin with GSAP
6gsap.registerPlugin("ScrollTrigger");
7
8/* ====================================
9   TIMELINE DECLARATIONS
10   ==================================== */
11
12// Create 8 separate timelines for different sections
13let scene = gsap.timeline();        // Master timeline
14let intro_tl = gsap.timeline();     // Intro section (0-700px)
15let part1_tl = gsap.timeline();     // Part 1 (700-1500px)
16let part2_tl = gsap.timeline();     // Part 2 (1500-2500px)
17let part3_tl = gsap.timeline();     // Part 3 (2500-3800px)
18let part4_tl = gsap.timeline();     // Part 4 (3800-4600px)
19let part5_tl = gsap.timeline();     // Part 5 (4600-5700px)
20let outro_tl = gsap.timeline();     // Outro section
21
22/* ====================================
23   SCROLLTRIGGER SETUP - PIN CONTAINER
24   ==================================== */
25
26ScrollTrigger.create({
27  trigger: "#container",
28  pin: true,                    // Pin container while scrolling
29  start: "top top",             // Start when top reaches top
30  end: "+=5700"                 // Total scroll distance: 5700px
31});
32
33/*
34  How pinning works:
35  1. User scrolls down 5700px total
36  2. #container stays pinned to viewport
37  3. Animations synchronized to scroll position
38  4. Creates immersive, fixed viewport experience
39*/
40
41/* ====================================
42   INITIAL STATE SETUP (gsap.set)
43   ==================================== */
44
45// These properties start hidden/off-screen
46// Animations will reveal them
47
48gsap.set(".specs", {
49  x: -160,      // Off-screen left
50  opacity: 0    // Invisible
51});
52
53gsap.set(".chars", {
54  x: 260        // Off-screen right
55  // Note: opacity not set, will fade in via animation
56});
57
58// Initialize model list items as invisible
59part2_tl.set(".models li", {
60  opacity: 0
61});
62
63// Initialize spec details as invisible
64part3_tl.set(".specs dt", {
65  opacity: 0
66});
67
68part3_tl.set(".specs dd", {
69  opacity: 0
70});
71
72// Initialize characteristics details as invisible
73part4_tl.set(".chars h2", {
74  opacity: 0
75});
76
77part4_tl.set(".chars dt", {
78  opacity: 0
79});
80
81part4_tl.set(".chars dd", {
82  opacity: 0
83});
84
85/* ====================================
86   INTRO TIMELINE (0-700px)
87   ===================================
88
89   The intro reveals the scooter image
90   and fades out welcome message
91*/
92
93intro_tl
94  //

Images used in the above program

Brand Logo

Liberty 150 Scooter image used in animation — Scooter Product Image

Background image used with SVG clipping mask — Animated Background

Scooter Animation with GSAP ScrollTrigger – Advanced Scroll-Driven Timeline Animation (Liberty 150)
