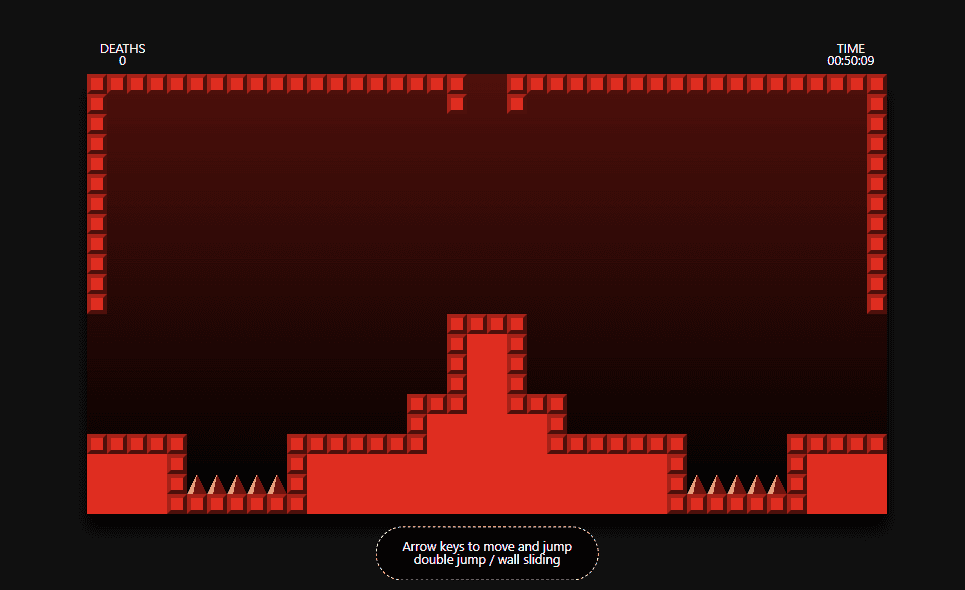

Spiky Dasher Game - Interactive Platformer
Component

Spiky Dasher Game - Interactive Platformer

CodewithLord
January 30, 2026

An interactive platformer game built with pure HTML, CSS, and JavaScript. Features grid-based tile system, player movement and jumping mechanics, lava spikes hazards, portals, and a scoring system with death counter and timer. Uses CSS gradients for pixel-art style graphics.

🧠 Description

This project showcases an interactive platformer game built entirely with HTML, CSS, and JavaScript.

The game features a grid-based tile system where players navigate through levels, avoiding lava spike hazards and collecting items to advance.

Players can move left and right, jump with double-jump mechanics, and must survive challenging obstacle courses while the game tracks deaths and elapsed time.

The entire visual style is created using CSS gradients and radial patterns, resulting in a unique pixel-art aesthetic without any external images for game elements.

Perfect for understanding game mechanics, physics-based movement, collision detection, and interactive game development.


💻 HTML Code


1<!DOCTYPE html>
2<html lang="en">
3
4<head>
5  <meta charset="UTF-8">
6  <title>Spiky Dasher Game | CodewithLord</title>
7  <link rel="stylesheet" href="./style.css">
8</head>
9
10<body>
11  <!-- arrow keys to move and jump -->
12  <!-- also a double jump -->
13  <div id='game_console'>
14    <div id='player2'></div>
15    <div id='game_alert'></div>
16    <div id='deaths_counter'></div>
17    <div id='time_counter'></div>
18  </div>
19  <script src="./script.js"></script>
20
21</body>
22</html>

HTML Structure Explanation

The HTML structure is intentionally minimal to allow JavaScript to dynamically generate the game world:

Key Elements:

  • #game_console - Main game container that holds the entire game world
  • #player2 - The player character element (uses CSS for styling with pseudo-elements)
  • #game_alert - Status messages and game notifications display area
  • #deaths_counter - Displays total number of deaths
  • #time_counter - Displays elapsed time since game start

The game uses a grid-based tile system where JavaScript dynamically creates tiles for:

  • Ground tiles (walkable surfaces)
  • Lava spikes (hazards that end the game)
  • Portals (level transitions)
  • Collectibles and other interactive elements

This minimal markup allows the JavaScript engine to fully control the game state and dynamically render all game elements.


🎨 CSS Code


1:root {
2  --root-clr: dimgray;
3  --tile-line-height: 30px;
4  --tile-size: 10px;
5  --clr: gray;
6  --pl-clr:
7    radial-gradient(circle at 75% 50%, white 1px, transparent 2px),
8    radial-gradient(circle at 25% 50%, white 1px, transparent 2px),
9    radial-gradient(circle at 75% 40%, black 3px, transparent 4px),
10    radial-gradient(circle at 25% 40%, black 3px, transparent 4px),
11    white;
12}
13
14html,
15body {
16  min-width: 100vw;
17  min-height: 100vh;
18  overflow: hidden;
19  margin: 0;
20  display: grid;
21  place-items: center;
22  background: #111;
23}
24
25#game_console {
26  width: 100%;
27  max-width: 1000px;
28  aspect-ratio: 16 / 9;
29  position: relative;
30  background:
31    linear-gradient(to bottom, rgba(0, 0, 0, .65), rgba(0, 0, 0, 1)),
32    var(--root-clr);
33  text-align: center;
34  line-height: var(--tile-line-height);
35  font-size: 0;
36  color: transparent;
37  user-select: none;
38  box-shadow:
39    0 20px 20px black;
40}
41
42#deaths_counter,
43#time_counter {
44  padding: 0rem 1rem;
45  font-size: 16px;
46  font-family: system-ui, serif;
47  line-height: 100%;
48  color: white;
49  position: absolute;
50}
51
52#deaths_counter {
53  top: 0;
54  left: 0;
55  transform: translate(0%, -125%);
56}
57
58#time_counter {
59  top: 0;
60  right: 0;
61  transform: translate(0%, -125%);
62}
63
64#game_alert {
65  padding: 1rem 2rem;
66  font-size: 16px;
67  font-family: system-ui, serif;
68  line-height: 100%;
69  color: white;
70  background: rgba(0, 0, 0, .75);
71  border: 1px dashed white;
72  position: absolute;
73  bottom: 0;
74  left: 50%;
75  transform: translate(-50%, 125%);
76  z-index: 99999;
77  border-radius: 50px;
78  transition: .5s;
79  opacity: 0;
80  pointer-events: none;
81  user-select: none;
82}
83
84.ground {
85  background: var(--root-clr);
86  box-sizing: border-box;
87  border-top: 5px solid rgba(0, 0, 0, .25);
88  border-right: 5px solid rgba(0, 0, 0, .65);
89  border-bottom: 5px solid rgba(0, 0, 0, .65);
90  border-left: 5px solid rgba(0, 0, 0, .25);
91  outline: 0;
92  z-index: 2;
93}
94
95.innerwall {
96  background: var(--root-clr);
97  outline: 0;
98}
99
100/* lava spikes */
101.lava {
102  background:
103    conic-gradient(at 50% 0%, transparent 0deg 153deg, rgba(0, 0, 0, .5) 155deg 190deg, rgba(255, 255, 255, .5) 192deg 205deg, transparent 207deg 360deg),
104    conic-gradient(at 50% 0%, transparent 0deg 153deg, var(--root-clr) 155deg 195deg, var(--root-clr) 197deg 205deg, transparent 207deg 360deg);
105}
106
107.spleft {
108  transform: rotate(-90deg);
109}
110
111.sptop {
112  transform: rotate(180deg);
113}
114
115.spright {
116  transform: rotate(90deg);
117}
118
119.portal1:after,
120.portal2:after {
121  content: '';
122  width: 150%;
123  height: 150%;
124  position: absolute;
125  top: -25%;
126  left: 0;
127  background:
128    radial-gradient(circle at 50% 50%,
129      rgba(0, 0, 0, 1) 3px,
130      rgba(0, 0, 0, .75) 6px,
131      rgba(0, 0, 0, .75) 10px,
132      rgba(0, 0, 0, .5) 11px,
133      rgba(0, 0, 0, .5) 15px,
134      rgba(0, 0, 0, .25) 16px,
135      rgba(0, 0, 0, .25) 20px),
136    var(--root-clr);
137  animation: portal 2s linear infinite;
138  pointer-events: none;
139  border-radius: 50%;
140}
141
142@keyframes portal {
143  50% {
144    transform: scale(1.1);
145  }
146}
147
148#player,
149#player:after {
150  content: '';
151  width: 25px;
152  height: 25px;
153  background: transparent;
154  position: absolute;
155  z-index: 10000;
156  pointer-events: none;
157}
158
159#player:before {
160  content: '';
161  width: 25px;
162  height: 25px;
163  position: absolute;
164  left: 0;
165  top: 0;
166  background:
167    radial-gradient(circle at 85% 15%, LightSeaGreen 3px, transparent 4px),
168    radial-gradient(circle at 15% 15%, LightSeaGreen 3px, transparent 4px),
169    radial-gradient(circle at 65% 90%, LightSeaGreen 2px, transparent 3px),
170    radial-gradient(circle at 35% 90%, LightSeaGreen 2px, transparent 3px);
171}
172
173#player:after {
174  width: 20px;
175  height: 25px;
176  background:
177    linear-gradient(to top, LightSeaGreen 0%, transparent 0%),
178    radial-gradient(circle at 60% 40%, PaleTurquoise 2px, transparent 3px),
179    radial-gradient(circle at 50% 50%, black 5px, transparent 6px),
180    DarkTurquoise;
181  position: absolute;
182  top: -2.5px;
183  left: 2.5px;
184  z-index: 10000;
185  border-radius: 50% 60% 50% 50% / 70% 70% 40% 40%;
186  pointer-events: none;
187  box-shadow:
188    inset 2px 2px 3px 3px rgba(255, 255, 255, .5),
189    inset -2px -2px 3px 3px rgba(0, 0, 0, .33);
190  animation: blink 4s linear infinite;
191}
192
193@keyframes blink {
194  5% {
195    background:
196      linear-gradient(to bottom, LightSeaGreen 35%, transparent 35%),
197      radial-gradient(circle at 60% 40%, PaleTurquoise 2px, transparent 3px),
198      radial-gradient(circle at 50% 50%, black 5px, transparent 6px),
199      DarkTurquoise;
200  }
201
202  10% {
203    background:
204      linear-gradient(to bottom, LightSeaGreen 60%, transparent 60%),
205      radial-gradient(circle at 60% 40%, PaleTurquoise 2px, transparent 3px),
206      radial-gradient(circle at 50% 50%, black 5px, transparent 6px),
207      DarkTurquoise;
208  }
209
210  15% {
211    background:
212      linear-gradient(to bottom, LightSeaGreen 0%, transparent 0%),
213      radial-gradient(circle at 60% 40%, PaleTurquoise 2px, transparent 3px),
214      radial-gradient(circle at 50% 50%, black 5px, transparent 6px),
215      DarkTurquoise;
216  }
217}
218
219/* player 2 player 2 player 2 */
220#player2,
221#player2:after {
222  content: '';
223  width: 25px;
224  height: 25px;
225  background: transparent;
226  position: relative;
227  z-index: 10000;
228  pointer-events: none;
229}
230
231#player2:before {
232  content: '';
233  width: 25px;
234  height: 25px;
235  position: absolute;
236  left: 0;
237  top: 0;
238  background:
239    radial-gradient(circle at 65% 90%, white 2px, transparent 3px),
240    radial-gradient(circle at 35% 90%, white 2px, transparent 3px);
241  z-index: 10001;
242}
243
244#player2:after {
245  width: 20px;
246  height: 25px;
247  background:
248    radial-gradient(circle at 60% 30%, white 2px, transparent 3px),
249    radial-gradient(circle at 50% 40%, black 5px, transparent 6px),
250    linear-gradient(to top, white, gold, orangered 50%),
251    orangered;
252  position: absolute;
253  top: -4px;
254  left: 2.5px;
255  z-index: 10000;
256  border-radius: 15px 15px 4px 4px;
257  pointer-events: none;
258  animation: blink2 4s linear infinite;
259}
260
261@keyframes blink2 {
262  5% {
263    background:
264      linear-gradient(to top, transparent 75%, orangered 75%),
265      radial-gradient(circle at 60% 30%, white 2px, transparent 3px),
266      radial-gradient(circle at 50% 40%, black 5px, transparent 6px),
267      linear-gradient(to top, white, gold, orangered 50%),
268      orangered;
269  }
270
271  10% {
272    background:
273      linear-gradient(to top, transparent 50%, orangered 50%),
274      radial-gradient(circle at 60% 30%, white 2px, transparent 3px),
275      radial-gradient(circle at 50% 40%, black 5px, transparent 6px),
276      linear-gradient(to top, white, gold, orangered 50%),
277      orangered;
278  }
279
280  15% {
281    background:
282      linear-gradient(to top, transparent 100%, orangered 100%),
283      radial-gradient(circle at 60% 30%, white 2px, transparent 3px),
284      radial-gradient(circle at 50% 40%, black 5px, transparent 6px),
285      linear-gradient(to top, white, gold, orangered 50%),
286      orangered;
287  }
288}
289
290.goleft:after {
291  transform: skewX(10deg);
292}
293
294.goright:after {
295  transform: skewX(-10deg);
296}
297
298.trailBall {
299  position: absolute;
300  width: 3px;
301  height: 3px;
302  background: darkorange;
303  border-radius: 50%;
304  opacity: .75;
305  pointer-events: none;
306  opacity: 1;
307  animation: trail .75s linear forwards;
308}
309
310@keyframes trail {
311  100% {
312    transform: translateY(-25px);
313    opacity: 0;
314  }
315}

CSS Breakdown

Color System & Variables

CSS custom properties define the core color palette:

  • --root-clr: dimgray - Primary color for tiles and UI elements
  • --tile-line-height: 30px - Height of each grid tile
  • --tile-size: 10px - Size unit for grid elements
  • --pl-clr - Complex radial gradients for player eye effects

Game Console Setup

#game_console uses aspect-ratio (16:9) for responsive game area.

Centered with CSS Grid's place-items: center for perfect viewport alignment.

Layered background gradient creates depth from light to dark.

user-select: none prevents text selection during gameplay.

Game Counters & Alerts

#deaths_counter and #time_counter positioned above game console with -125% transform.

#game_alert positioned below with transition for smooth fade in/out.

Uses pointer-events: none to prevent interaction when hidden.

Tile Styling

.ground tiles use beveled borders (light top-left, dark bottom-right) for 3D appearance.

.innerwall creates internal obstacles and level structure.

.lava spikes use conic-gradients to create directional spike geometry.

Rotation classes (.spleft, .sptop, .spright) orient spikes in different directions.

Portal Animation

.portal1:after and .portal2:after create expanding ripple effect.

Uses radial gradients with varying opacity for depth perception.

@keyframes portal scales the portal at 50% for pulsing animation.

Player Character Design

#player uses pseudo-elements (:before and :after) for detailed sprite design.

Eyes created with radial-gradient circles for expressive look.

Body uses multiple layered gradients with LightSeaGreen, PaleTurquoise colors.

@keyframes blink animates closing eyelids every 4 seconds.

Player 2 Character

#player2 features orangered/gold coloring for distinction.

Similar pseudo-element structure with different gradient colors.

@keyframes blink2 creates blinking effect for variety.

Movement Classes

.goleft and .goright apply skew transforms for running/jumping animation.

Creates illusion of character leaning into direction of movement.

Trail Effects

.trailBall creates particle trails behind moving players.

3px orange circles with fade animation.

@keyframes trail moves particles upward while fading out over 0.75 seconds.

Performance Optimization

Extensive use of CSS gradients eliminates need for sprite sheets.

All animations use GPU-accelerated transforms.

Pointer-events carefully managed to prevent interaction with hidden UI elements.


⚙️ JavaScript Code Overview


1const gc = document.querySelector('#game_console')
2const gc_loc = gc.getBoundingClientRect()
3const player = 'player2'
4var pl;
5
6var cols = 40 // multiple of 16
7var rows = 22 // multiple of 9
8const tile_size = gc_loc.width * (100 / cols / 100)
9const pl_size = tile_size * 2
10document.body.style.setProperty('--tile-line-height', pl_size + 'px')
11
12gc.style.width = '1000px'
13gc.style.height = tile_size * rows + 'px'
14
15var gravity = 8,
16  kd,
17  x_speed = 5,
18  pb_y = 0,
19  score = 0,
20  rot = 0,
21  data_p = 0,
22  bonus = 1,
23  dead = false,
24  kd_list = [],
25  d = {},
26  gp,
27  gpa,
28  dbljump = false,
29  dash = false,
30  timer = 0,
31  level_num = -1;
32
33const levels = [
34  {
35    start: '19.5,0',
36    map: [8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 0, 1, 1, 0, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8,
37      8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 0, 1, 1, 0, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8,
38      8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 0, 1, 1, 0, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8,
39      8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 0, 1, 1, 0, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8,
40      8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 0, 1, 1, 0, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8,
41      8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 0, 1, 1, 0, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8,
42      8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 0, 1, 1, 0, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8,
43      8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 0, 1, 1, 0, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8,
44      8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 0, 1, 1, 0, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8,
45      8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 0, 1, 1, 0, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8,
46      8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 0, 1, 1, 0, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8,
47      8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 0, 1, 1, 0, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8,
48      8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 0, 1, 1, 0, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8,
49      8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 0, 1, 1, 0, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8,
50      8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 0, 1, 1, 0, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8,
51      8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 0, 1, 1, 0, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8,
52      8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 0, 1, 1, 0, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8,
53      8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 0, 1, 1, 0, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8,
54      8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 0, 1, 1, 0, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8,
55      8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 0, 1, 1, 0, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8,
56      8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 0, 1, 1, 0, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8,
57      8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 0, 9, 9, 0, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8]
58  },
59  {
60    start: '19.5,0',
61    map: [0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0,
62      0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 1, 1, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0,
63      0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0,
64      0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0,
65      0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0,
66      0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0,
67      0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0,
68      0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0,
69      0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0,
70      0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0,
71      0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0,
72      0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0,
73      9, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 0, 0, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 9,
74      9, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 8, 8, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 9,
75      9, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 8, 8, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 9,
76      9, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 8, 8, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 9,
77      9, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 0, 0, 8, 8, 0, 0, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 9,
78      9, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 8, 8, 8, 8, 8, 8, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 9,
79      0, 0, 0, 0, 0, 1, 1, 1, 1, 1, 0, 0, 0, 0, 0, 0, 0, 8, 8, 8, 8, 8, 8, 0, 0, 0, 0, 0, 0, 0, 1, 1, 1, 1, 1, 0, 0, 0, 0, 0,
80      8, 8, 8, 8, 0, 1, 1, 1, 1, 1, 0, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 0, 1, 1, 1, 1, 1, 0, 8, 8, 8, 8,
81      8, 8, 8, 8, 0, 2, 2, 2, 2, 2, 0, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 0, 2, 2, 2, 2, 2, 0, 8, 8, 8, 8,
82      8, 8, 8, 8, 0, 0, 0, 0, 0, 0, 0, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 0, 0, 0, 0, 0, 0, 0, 8, 8, 8, 8]
83  },
84  {
85    start: '2,13',
86    map: [8, 8, 8, 8, 8, 8, 8, 8, 0, 0, 0, 0, 0, 0, 8, 8, 8, 8, 8, 8, 8, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0,
87      8, 0, 0, 0, 0, 8, 8, 8, 0, 1, 1, 1, 1, 0, 8, 8, 8, 0, 0, 0, 0, 0, 5, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 9,
88      8, 0, 1, 1, 0, 8, 8, 8, 0, 1, 1, 1, 1, 0, 8, 0, 0, 0, 1, 1, 1, 0, 5, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 9,
89      8, 0, 1, 1, 0, 8, 8, 8, 0, 1, 1, 1, 1, 0, 8, 0, 1, 1, 1, 1, 1, 0, 5, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 9,
90      8, 0, 1, 1, 0, 8, 8, 8, 0, 1, 1, 1, 1, 0, 8, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 9,
91      8, 0, 1, 1, 0, 8, 8, 8, 0, 1, 1, 1, 1, 0, 0, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 9,
92      8, 0, 1, 1, 0, 0, 0, 0, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 9,
93      8, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0,
94      0, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 8, 8, 8, 8, 8, 8, 8, 8,
95      0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 0, 0, 0, 8, 8, 8, 8, 8,
96      0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 0, 0, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 3, 0, 8, 8, 8, 8, 8,
97      0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 8, 8, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 3, 0, 0, 0, 8, 8, 8,
98      1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 8, 8, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 8, 8, 8,
99      1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 8, 8, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 8, 8, 8,
100      1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 8, 8, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 8, 8, 8,
101      1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 8, 8, 0, 2, 2, 2, 2, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 0, 8, 8,
102      1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 0, 0, 1, 1, 1, 1, 1, 0, 8, 8, 0, 0, 0, 0, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 8, 8,
103      1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 8, 0, 1, 1, 1, 1, 1, 0, 8, 8, 8, 8, 8, 8, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 0, 8,
104      0, 0, 0, 0, 0, 1, 1, 1, 1, 1, 0, 8, 0, 2, 2, 2, 2, 2, 0, 8, 8, 8, 8, 8, 8, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 0,
105      8, 8, 8, 8, 0, 1, 1, 1, 1, 1, 0, 8, 0, 0, 0, 0, 0, 0, 0, 8, 8, 8, 8, 8, 8, 0, 2, 2, 2, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0,
106      8, 8, 8, 8, 0, 2, 2, 2, 2, 2, 0, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 0, 0, 0, 0, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 0,
107      8, 8, 8, 8, 0, 0, 0, 0, 0, 0, 0, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0]
108
109  },
110  {
111    start: '1,2',
112    map: [0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0,
113      1, 1, 1, 1, 1, 1, 1, 1, 0, 1, 1, 1, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 1, 1, 1, 0, 1, 1, 1, 1, 1, 1, 1, 0,
114      1, 1, 1, 1, 1, 1, 1, 1, 0, 1, 1, 1, 4, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 4, 1, 1, 1, 0, 1, 1, 1, 1, 1, 1, 1, 0,
115      1, 1, 1, 1, 1, 1, 1, 1, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 1, 1, 1, 1, 1, 1, 1, 0,
116      1, 1, 1, 1, 1, 1, 1, 1, 4, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 4, 1, 1, 1, 1, 6, 1, 1, 0,
117      1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0,
118      1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 1, 1, 1, 1, 1, 1, 0, 0, 1, 1, 1, 1, 1, 1, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0,
119      0, 0, 0, 0, 0, 0, 1, 1, 1, 1, 1, 1, 0, 1, 1, 1, 1, 1, 1, 0, 0, 1, 1, 1, 1, 1, 1, 0, 1, 1, 1, 1, 1, 1, 0, 0, 0, 0, 0, 0,
120      0, 1, 1, 1, 1, 0, 1, 1, 0, 1, 1, 1, 0, 1, 1, 1, 1, 1, 1, 0, 0, 1, 1, 1, 1, 1, 1, 0, 1, 1, 1, 0, 1, 1, 0, 1, 1, 1, 1, 0,
121      0, 1, 1, 1, 1, 0, 2, 2, 0, 2, 2, 2, 0, 2, 2, 2, 2, 2, 2, 0, 0, 2, 2, 2, 2, 2, 2, 0, 2, 2, 2, 0, 2, 2, 0, 1, 1, 1, 1, 0,
122      0, 1, 1, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 1, 1, 0,
123      0, 1, 1, 1, 1, 1, 1, 1, 0, 1, 1, 1, 0, 1, 1, 1, 1, 1, 1, 0, 0, 1, 1, 1, 1, 1, 1, 0, 1, 1, 1, 0, 1, 1, 1, 1, 1, 1, 1, 0,
124      0, 1, 1, 1, 1, 1, 1, 1, 4, 1, 1, 1, 0, 1, 1, 1, 1, 1, 1, 0, 0, 1, 1, 1, 1, 1, 1, 0, 1, 1, 1, 4, 1, 1, 1, 1, 1, 1, 1, 9,
125      0, 1, 7, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 1, 1, 1, 1, 1, 1, 0, 0, 1, 1, 1, 1, 1, 1, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 9,
126      0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 4, 1, 1, 1, 1, 1, 1, 0, 0, 1, 1, 1, 1, 1, 1, 4, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 9,
127      0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 4, 4, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 9,
128      0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 9,
129      0, 1, 1, 1, 1, 1, 1, 1, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 1, 1, 1, 1, 1, 1, 1, 9,
130      0, 0, 0, 0, 0, 1, 1, 1, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 1, 1, 1, 0, 0, 0, 0, 0,
131      8, 8, 8, 8, 0, 1, 1, 1, 0, 1, 1, 1, 0, 1, 1, 1, 1, 1, 1, 0, 0, 1, 1, 1, 1, 1, 1, 0, 1, 1, 1, 0, 1, 1, 1, 0, 8, 8, 8, 8,
132      8, 8, 8, 8, 0, 2, 2, 2, 0, 2, 2, 2, 0, 2, 2, 2, 2, 2, 2, 0, 0, 2, 2, 2, 2, 2, 2, 0, 2, 2, 2, 0, 2, 2, 2, 0, 8, 8, 8, 8,
133      8, 8, 8, 8, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 8, 8, 8, 8]
134
135
136  },
137  {
138    start: '1,2',
139    map: [0, 0, 0, 0, 0, 8, 8, 8, 0, 0, 0, 0, 0, 0, 8, 8, 8, 8, 8, 8, 8, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0,
140      1, 1, 1, 1, 0, 0, 0, 0, 0, 4, 4, 4, 4, 0, 8, 8, 8, 0, 0, 0, 0, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 3, 0,
141      1, 1, 1, 1, 1, 1, 1, 1, 0, 1, 1, 1, 1, 0, 0, 0, 0, 0, 0, 1, 1, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 3, 0,
142      1, 1, 1, 1, 1, 1, 1, 1, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 1, 1, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 3, 0,
143      1, 1, 1, 1, 1, 1, 1, 1, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 3, 0,
144      1, 1, 1, 1, 1, 1, 1, 1, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0,
145      1, 1, 1, 1, 1, 1, 1, 1, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0,
146      0, 0, 0, 0, 0, 0, 1, 1, 0, 1, 1, 1, 0, 1, 1, 1, 1, 1, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 0, 0, 0, 0, 1, 1, 1, 0,
147      0, 0, 1, 1, 1, 1, 1, 1, 0, 1, 1, 1, 0, 1, 1, 1, 1, 1, 0, 1, 1, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 1, 1, 1, 1, 1, 1, 1, 0,
148      0, 1, 1, 1, 1, 1, 1, 1, 0, 1, 1, 1, 0, 1, 1, 1, 1, 1, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 0, 0, 0, 1, 1, 1, 1, 0,
149      0, 1, 1, 1, 1, 1, 1, 1, 0, 0, 1, 1, 0, 1, 1, 1, 1, 1, 0, 1, 1, 1, 1, 1, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 1, 1, 1, 1, 0,
150      0, 1, 1, 1, 1, 1, 1, 1, 0, 1, 1, 1, 0, 1, 1, 1, 1, 1, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 0, 1, 1, 1, 0,
151      0, 1, 1, 1, 0, 0, 0, 0, 0, 1, 1, 1, 0, 1, 1, 1, 1, 1, 0, 1, 1, 1, 1, 1, 1, 1, 1, 0, 1, 1, 1, 1, 1, 1, 1, 0, 1, 1, 1, 9,
152      0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 1, 1, 1, 9,
153      0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 1, 1, 1, 1, 0, 1, 1, 1, 9,
154      0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 2, 2, 2, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 1, 1, 1, 9,
155      0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 0, 0, 1, 1, 1, 1, 1, 1, 1, 0, 1, 0, 1, 1, 1, 9,
156      0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 8, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 1, 1, 1, 9,
157      0, 0, 0, 0, 0, 1, 1, 1, 1, 1, 1, 1, 0, 2, 2, 2, 2, 2, 0, 0, 0, 0, 0, 0, 8, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 0, 0, 0, 0,
158      8, 8, 8, 8, 0, 1, 1, 1, 1, 1, 1, 1, 0, 0, 0, 0, 0, 0, 0, 8, 8, 8, 8, 8, 8, 0, 2, 2, 2, 1, 1, 1, 1, 1, 1, 0, 8, 8, 8, 8,
159      8, 8, 8, 8, 0, 2, 2, 2, 2, 2, 0, 0, 0, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 0, 0, 0, 0, 1, 1, 1, 1, 1, 1, 0, 8, 8, 8, 8,
160      8, 8, 8, 8, 0, 0, 0, 0, 0, 0, 0, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 0, 0, 0, 0, 0, 0, 0, 0, 8, 8, 8, 8]
161  },
162  {
163    start: '2,13',
164    map: [8, 8, 8, 8, 8, 8, 8, 8, 0, 0, 0, 0, 0, 0, 8, 8, 8, 8, 8, 8, 8, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0,
165      8, 0, 0, 0, 0, 8, 8, 8, 0, 1, 1, 1, 1, 0, 8, 8, 8, 0, 0, 0, 0, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 9,
166      8, 0, 1, 1, 0, 8, 8, 8, 0, 1, 1, 1, 1, 0, 8, 0, 0, 0, 1, 1, 1, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 9,
167      8, 0, 1, 1, 0, 8, 8, 8, 0, 1, 1, 1, 1, 0, 8, 0, 1, 1, 1, 1, 1, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 9,
168      8, 0, 1, 1, 0, 8, 8, 8, 0, 1, 1, 1, 1, 0, 8, 0, 1, 1, 1, 1, 1, 4, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 9,
169      8, 0, 1, 1, 0, 8, 8, 8, 0, 1, 1, 1, 1, 0, 0, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 9,
170      8, 0, 1, 1, 0, 0, 0, 0, 0, 1, 1, 1, 1, 4, 4, 4, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 9,
171      8, 0, 1, 1, 4, 4, 4, 4, 4, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 0, 0, 1, 1, 1, 1, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0,
172      0, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 8, 8, 8, 8, 8, 8, 8, 8,
173      0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 0, 0, 0, 8, 8, 8, 8, 8,
174      0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 3, 0, 8, 8, 8, 8, 8,
175      0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 0, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 3, 0, 0, 0, 8, 8, 8,
176      1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 8, 8, 8,
177      1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 8, 8, 8,
178      1, 1, 1, 1, 1, 1, 0, 0, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 1, 1, 1, 1, 1, 1, 0, 8, 8, 8,
179      1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 0, 8, 8,
180      1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 8, 8,
181      1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 0, 8,
182      0, 0, 0, 0, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 0, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 0,
183      8, 8, 8, 8, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0,
184      8, 8, 8, 8, 0, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 0,
185      8, 8, 8, 8, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0]
186  }
187]
188
189function buildGame() {
190  // clear tiles and update level number
191  gc.innerHTML = "<div id='" + player + "'></div><div id='game_alert'></div><div id='deaths_counter'></div><div id='time_counter'></div>"
192  if (level_num < levels.length - 1) {
193    level_num++
194  } else {
195    level_num = 0
196  }
197
198  let time = 0
199  let deaths = 0
200  let tc = document.querySelector('#time_counter')
201  let dc = document.querySelector('#deaths_counter')
202  tc.innerHTML = 'TIME<br>' + time
203  dc.innerHTML = 'DEATHS<br>' + deaths
204
205  // set random level color
206  document.body.style.setProperty('--root-clr', 'hsl(' + Math.random() * 360 + 'deg,75%,50%)')
207
208  // add tiles for new level
209  for (var i = 0; i < cols * rows; i++) {
210    var d = document.createElement('div')
211    d.className = 'tile'
212
213    if (levels[level_num].map[i] == 0) {
214      d.className = 'tile ground'
215      // d.style.background = 'dimgray'
216    }
217    if (levels[level_num].map[i] == 2) {
218      d.className = 'tile lava'
219    }
220    if (levels[level_num].map[i] == 3) {
221      d.className = 'tile lava spleft'
222    }
223    if (levels[level_num].map[i] == 4) {
224      d.className = 'tile lava sptop'
225    }
226    if (levels[level_num].map[i] == 5) {
227      d.className = 'tile lava spright'
228    }
229    if (levels[level_num].map[i] == 6) {
230      d.className = 'tile portal1'
231    }
232    if (levels[level_num].map[i] == 7) {
233      d.className = 'tile portal2'
234    }
235    if (levels[level_num].map[i] == 8) {
236      d.className = 'tile innerwall'
237    }
238    if (levels[level_num].map[i] == 9) {
239      d.className = 'tile nextlevel'
240    }
241    d.setAttribute('grid_loc', [i % cols, Math.floor(i / cols)])
242    d.style.width = tile_size + 'px'
243    d.style.height = tile_size + 'px'
244    d.style.position = 'absolute'
245    // d.innerHTML = i
246    // d.style.outline = '1px dotted gray'
247    d.style.left = (i % cols) * tile_size + 'px'
248    d.style.top = Math.floor(i / cols) * tile_size + 'px'
249
250    gc.appendChild(d)
251  }
252
253  // add player stuff
254  const ga = document.querySelector('#game_alert')
255  var pl = document.querySelector('#' + player)
256  pl.style.width = tile_size + 'px'
257  pl.style.height = tile_size + 'px'
258  pl.style.top = (tile_size * levels[level_num].start.split(',')[1]) + 'px'
259  pl.style.left = (tile_size * levels[level_num].start.split(',')[0]) + 'px'
260
261  // add info box
262  ga.innerHTML = 'Arrow keys to move and jump<br>double jump / wall sliding'
263  ga.style.opacity = '1'
264
265  var pl_loc = pl.getBoundingClientRect()
266  var x = pl_loc.left
267
268  function updatePlayer() {
269    // get points based on player location
270    var pl_loc = pl.getBoundingClientRect()
271    var pl_center = document.elementFromPoint(pl_loc.x + (tile_size * .5), pl_loc.y + (tile_size * .75))
272    var pl_xy1 = document.elementFromPoint(pl_loc.x + (pl_loc.width * .25), pl_loc.y + pl_loc.height + gravity)
273    var pl_xy2 = document.elementFromPoint(pl_loc.x + (pl_loc.width * .75), pl_loc.y + pl_loc.height + gravity)
274    var pl_xy3 = document.elementFromPoint(pl_loc.x - (x_speed * .5), pl_loc.y + (pl_loc.height * .5))
275    var pl_xy4 = document.elementFromPoint(pl_loc.x + pl_loc.width + (x_speed * .5), pl_loc.y + (pl_loc.height * .5))
276    var pl_xy5 = document.elementFromPoint(pl_loc.x + (pl_loc.width * .5), pl_loc.y - (gravity * .5))
277    var pl_xy6 = document.elementFromPoint(pl_loc.x + (pl_size * .5), pl_loc.y + pl_size)
278
279    // console.log(pl_center)
280
281    function endGame() {
282      alert('you died')
283    }
284
285    //if dead stop, else update player and everything else
286    if (!pl_xy1 || !pl_xy2 || dead) {
287      // endGame()
288    } else {
289
290      // set player top
291      // if player on ground set new top
292      if (pl_xy1.classList.contains('ground') ||
293        pl_xy2.classList.contains('ground')) {
294        gravity = 0
295      } else {
296        if (gravity < 8) {
297          gravity += .51
298        } else {
299          gravity = 8
300        }
301      }
302      pl.style.top = pl_loc.top - 6.25 - gc_loc.top + gravity + 'px'
303      // console.log(gravity)
304
305      var gamepads = navigator.getGamepads ? navigator.getGamepads() : (navigator.webkitGetGamepads ? navigator.webkitGetGamepads : []);
306      if (!gamepads) {
307        return;
308      }
309      var gp = gamepads[0];
310
311      // add jump-force (change the gravity)
312      if ((d[38]
313        || (gp && (gp.buttons[0].pressed
314          || gp.buttons[1].pressed
315          || gp.buttons[2].pressed
316          || gp.buttons[3].pressed)))
317        && gravity == 0) {
318        dbljump = false
319        gravity = -9
320      }
321      if ((d[38]
322        || (gp && (gp.buttons[0].pressed
323          || gp.buttons[1].pressed
324          || gp.buttons[2].pressed
325          || gp.buttons[3].pressed)))
326        && gravity > 0) {
327        if (!dbljump) {
328          gravity = -9
329        }
330        dbljump = true
331      }
332
333      if (gp) {
334        var gpa = Math.round(gp.axes[0])
335        if (gpa == 0 || gravity == 0) {
336          pl.className = ''
337          pl.style.transform = 'rotate(0deg)'
338        }
339      }
340
341      // track left/right movement
342      if ((d[37] || (gp && gpa == -1)) && x > gc_loc.x) {
343        if (!pl_xy3.classList.contains('ground')) {
344          x -= x_speed
345          pl.className = ''
346          pl.classList.add('goleft')
347        } else {
348          if (gravity > 0) {
349            dbljump = false
350            gravity = 1
351            pl.style.transform = 'rotate(90deg)'
352          }
353          pl.className = ''
354        }
355      }
356
357      // console.log(x_speed)
358      if ((d[39] || (gp && gpa == 1)) && x + pl_loc.width < gc_loc.x + gc_loc.width) {
359        if (!pl_xy4.classList.contains('ground')) {
360          x += x_speed
361          pl.className = ''
362          pl.classList.add('goright')
363        } else {
364          if (gravity > 0) {
365            dbljump = false
366            gravity = 1
367            pl.style.transform = 'rotate(-90deg)'
368          }
369          pl.className = ''
370        }
371      }
372
373      pl.style.left = x - gc_loc.left + 'px'
374      // pl.style.left = x + x_speed - gc_loc.left + 'px'
375
376      // set different interactions based on tile type
377      if (pl_xy5.classList.contains('ground')) {
378        gravity = 8
379      }
380
381      if (pl_center.classList.contains('lava')) {
382        // console.log('lava')
383        pl.style.top = (tile_size * levels[level_num].start.split(',')[1]) + 'px'
384        pl.style.left = (tile_size * levels[level_num].start.split(',')[0]) + 'px'
385        pl_loc = pl.getBoundingClientRect()
386        x = pl_loc.left
387        deaths++
388        dc.innerHTML = 'DEATHS<br>' + deaths
389      }
390
391      if (pl_center.classList.contains('portal1')) {
392        let p2 = document.querySelector('.portal2')
393        let p2_loc = p2.getBoundingClientRect()
394        pl.style.top = p2_loc.top - gc_loc.top + 'px'
395        pl.style.left = p2_loc.left - gc_loc.left + 'px'
396        pl_loc = pl.getBoundingClientRect()
397        x = pl_loc.left
398      }
399
400      if (pl_center.classList.contains('nextlevel')) {
401        buildGame()
402      }
403
404      timer++
405      function secondsToTime(e) {
406        var h = Math.floor(e / 3600).toString().padStart(2, '0'),
407          m = Math.floor(e % 3600 / 60).toString().padStart(2, '0'),
408          s = Math.floor(e % 60).toString().padStart(2, '0');
409
410        return h + ':' + m + ':' + s;
411        //return `${h}:${m}:${s}`;
412      }
413      tc.innerHTML = 'TIME<br>' + secondsToTime(timer)
414
415      playerTrail()
416      setTimeout(updatePlayer, 1000 / 45) // update player 30-60 times a second
417    }
418  }
419
420  updatePlayer()
421
422  // add trail behind player b/c it's fun
423  function playerTrail() {
424    if (player == 'player') {
425      let x = pl.getBoundingClientRect().x
426      let y = pl.getBoundingClientRect().y
427      let b = document.createElement('div')
428      b.className = 'trailBall'
429      b.style.left = x + 11 - gc_loc.left + 'px'
430      b.style.top = y + 5 - gc_loc.top + 'px'
431      b.onanimationend = function () {
432        b.remove()
433      }
434      gc.appendChild(b)
435    }
436
437    if (player == 'player2') {
438      let x = pl.getBoundingClientRect().x
439      let y = pl.getBoundingClientRect().y
440      let b = document.createElement('div')
441      b.className = 'trailBall'
442      let xx = Math.floor(Math.random() * 15) + 5
443      b.style.left = x + xx - gc_loc.left + 'px'
444      b.style.top = y - 3 - gc_loc.top + 'px'
445      b.onanimationend = function () {
446        b.remove()
447      }
448      gc.appendChild(b)
449    }
450
451  }
452
453  // key tracking
454  if (level_num > 0) {
455    window.addEventListener('keydown', function (e) {
456      d[e.which] = true;
457    })
458    window.addEventListener('keyup', function (e) {
459      d[e.which] = false;
460      pl.className = ''
461      pl.style.transform = 'rotate(0deg)'
462    })
463    window.addEventListener("gamepadconnected", function (e) {
464      var gp = navigator.getGamepads()[e.gamepad.index];
465      // console.log("A " + gp.id + " was successfully detected! There are a total of " + gp.buttons.length + " buttons.")
466    });
467  } else {
468    timer = 0
469    deaths = 0
470  }
471}
472
473window.addEventListener('load', buildGame)
474window.focus()

The JavaScript engine handles all game logic and physics simulation. Key systems include:

Game Initialization

  • Dynamically generates grid-based level layout from tile data
  • Creates player character with position tracking
  • Sets up event listeners for keyboard input (Arrow Keys)
  • Initializes game clock and death counter

Player Movement & Physics

  • Horizontal movement (left/right arrow keys) with acceleration/deceleration
  • Gravity simulation pulling player downward each frame
  • Ground detection for landing on platform tiles
  • Double-jump mechanic allowing mid-air jump when grounded

Collision Detection

  • Grid-based collision system checking adjacent tiles
  • Detects collisions with ground (walkable), walls (solid), and hazards
  • Lava spike detection triggers death state and respawn
  • Portal detection for level progression

Game State Management

  • Tracks player position (x, y coordinates)
  • Monitors health/death state
  • Counts total deaths and elapsed time
  • Displays game alerts and status messages

Rendering System

  • Updates player position each game frame
  • Positions player element with CSS transforms
  • Applies movement direction classes (.goleft, .goright)
  • Creates particle trail effects on movement

Input Handling

  • Listens for keyboard events (Arrow Left, Arrow Right, Arrow Up)
  • Implements key press state tracking for smooth movement
  • Prevents default browser behaviors during gameplay
  • Handles multiple simultaneous key presses

Game Loop

  • RequestAnimationFrame-based 60 FPS update cycle
  • Applies physics calculations each frame
  • Updates collision detection and game state
  • Renders updated player position and effects
  • Updates UI counters (deaths, time)

Level & Tile System

  • Grid-based level design with configurable tile types
  • Tile classes for different behaviors:
    • .ground - Walkable surfaces
    • .lava - Hazardous instant-death spikes
    • .portal1/portal2 - Level transitions
    • .innerwall - Solid obstacles

Game Mechanics Summary

The game combines classic platformer mechanics with a grid-based physics system. Players navigate through obstacle courses, avoiding lava spikes while utilizing double-jump mechanics to reach otherwise inaccessible platforms. The game tracks performance metrics (deaths and time) to challenge players to improve their skills.

Love this component?

Explore more components and build amazing UIs.

View All Components
