🧠 Description

This project demonstrates a smooth scroll-based panel animation using GSAP ScrollTrigger.
Each fullscreen section pins to the viewport, then scales down and fades out as the user scrolls — creating a clean, cinematic transition between sections.

Why This Animation Feels Premium

Fullscreen panel-based layout
Scroll-driven scale & opacity animation
Smooth pinning without layout jumps
Minimal and modern UI
GPU-friendly transform animations
Perfect for landing pages, portfolios, and storytelling websites

Core Concept

Each .panel:

Occupies 100vh
Pins itself when reaching the viewport bottom
Scales down (1 → 0.6)
Fades out (opacity: 1 → 0)
Unpins smoothly so the next section can take over

All motion is controlled purely by scroll — no timelines required.

💻 Step 1: HTML Structure

Complete HTML Code

1<!DOCTYPE html>
2<html lang="en">
3<head>
4  <meta charset="UTF-8" />
5  <meta name="viewport" content="width=device-width, initial-scale=1.0" />
6  <title>GSAP Panels</title>
7
8  <!-- CSS -->
9  <link rel="stylesheet" href="style.css" />
10
11  <!-- GSAP -->
12  <script src="https://unpkg.com/gsap@3/dist/gsap.min.js"></script>
13  <script src="https://unpkg.com/gsap@3/dist/ScrollTrigger.min.js"></script>
14</head>
15
16<body>
17  <div class="slides-wrapper">
18    <section class="panel">
19      <h1>Section 1</h1>
20      <img src="https://assets.codepen.io/16327/demo1.png" />
21    </section>
22
23    <section class="panel">
24      <h1>Section 2</h1>
25      <img src="https://assets.codepen.io/16327/demo2.png" />
26    </section>
27
28    <section class="panel">
29      <h1>Section 3</h1>
30      <img src="https://assets.codepen.io/16327/demo3.png" />
31    </section>
32
33    <section class="panel">
34      <h1>Section 4</h1>
35      <img src="https://assets.codepen.io/16327/demo4.png" />
36    </section>
37
38    <section class="panel">
39      <h1>Section 5</h1>
40      <img src="https://assets.codepen.io/16327/demo5.png" />
41    </section>
42  </div>
43
44  <script src="script.js"></script>
45</body>
46</html>

HTML Breakdown

.slides-wrapper holds all scroll sections

Each .panel is a fullscreen slide

Headings + images create visual hierarchy

GSAP & ScrollTrigger loaded via CDN for simplicity

🎨 Step 2: CSS – Layout & Visual Styling

CSS Code

1:root {
2  --white: #ffffff;
3  --black: #0b0b0b;
4}
5
6html,
7body {
8  margin: 0;
9  padding: 0;
10  height: 100%;
11  background: var(--black);
12  overflow-x: hidden;
13}
14
15.slides-wrapper {
16  width: 100%;
17}
18
19.panel {
20  min-height: 100vh;
21  display: flex;
22  flex-direction: column;
23  justify-content: center;
24  align-items: center;
25  background: var(--black);
26  color: var(--white);
27  text-align: center;
28  position: relative;
29  perspective: 1200px;
30}
31
32.panel h1 {
33  font-size: clamp(3rem, 12vw, 10rem);
34  margin: 0;
35  text-transform: uppercase;
36}
37
38.panel img {
39  width: 50%;
40  max-width: 400px;
41  margin-top: 40px;
42}

CSS Breakdown

CSS Variables → Easy theme control

100vh panels → Fullscreen experience

Flexbox centering → Perfect alignment

Clamp() typography → Responsive headings

Perspective → Prepares for future 3D effects

⚙️ Step 3: JavaScript – GSAP ScrollTrigger Logic

JavaScript Code

1gsap.registerPlugin(ScrollTrigger);
2
3const panels = gsap.utils.toArray(".panel");
4
5panels.forEach((panel) => {
6  gsap.fromTo(
7    panel,
8    {
9      scale: 1,
10      opacity: 1
11    },
12    {
13      scale: 0.6,
14      opacity: 0,
15      scrollTrigger: {
16        trigger: panel,
17        start: "bottom bottom",
18        end: "bottom top",
19        scrub: true,
20        pin: true,
21        pinSpacing: false
22      }
23    }
24  );
25});

JavaScript Breakdown

Key Concepts Used:

ScrollTrigger.registerPlugin() → Enables scroll-based animations

gsap.utils.toArray() → Converts NodeList into an array

fromTo() → Explicit start & end animation states

scrub: true → Smooth frame-by-frame scroll sync

pin: true → Locks panel in viewport

pinSpacing: false → Prevents extra space after pin

Scroll Flow Explanation

Panel reaches bottom of viewport

Panel pins instantly

Scale + opacity animate on scroll

Panel releases smoothly

Next panel takes over

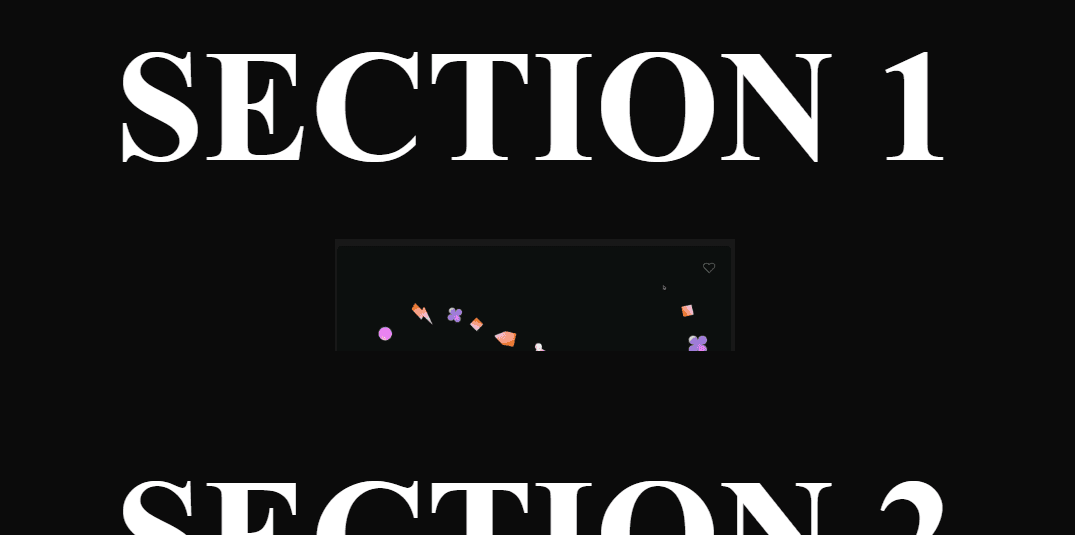

GSAP ScrollTrigger Panels – Smooth Pin & Scale Scroll Animation
