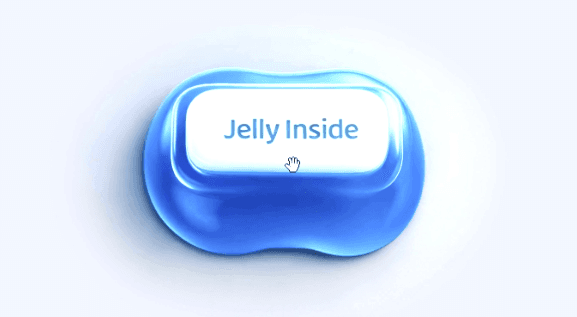

Jelly Squish Button – Interactive Drag & Squash Animation with GSAP
Component

Jelly Squish Button – Interactive Drag & Squash Animation with GSAP

CodewithLord
December 18, 2025

A premium jelly-like squish interaction built using HTML Canvas, GSAP Draggable, and inertia physics, featuring frame-by-frame image animation, smooth dampening, and optional mouse-follow behavior.


🧠 Description


This project recreates a high-quality jelly squish interaction using HTML Canvas and GSAP Draggable.
The illusion of soft, elastic deformation is achieved through frame-by-frame image animation, controlled by vertical drag input and enhanced with inertia, smoothing, and dampening physics.


Why This Interaction Feels Real


  • Ultra-smooth drag-based squish effect
  • 215 high-resolution image frames
  • Inertia-powered elastic motion
  • Realistic dampening & easing
  • Optional mouse-follow mode
  • Mobile-friendly touch support
  • Premium UI polish & loader animation

Core Concept


Instead of deforming vectors or meshes, this technique uses:

  • Pre-rendered image sequences
  • GSAP Draggable Y-axis control
  • Frame interpolation with smoothing
  • Physics-based dampening

The result feels soft, organic, and physically believable — perfect for buttons, product previews, or playful UI elements.



💻 Step 1: HTML Structure


Complete HTML Code


1<!DOCTYPE html>
2<html lang="en">
3
4  <head>
5    <meta charset="UTF-8">
6    <title>Jelly Squish Button</title>
7    <meta name="viewport" content="width=device-width, initial-scale=1">
8<meta name="theme-color" content="#111317" />
9<meta property="og:image" content="https://www.cerpow.com/jelly/jelly_00085.jpg" /><link rel="stylesheet" href="https://public.codepenassets.com/css/normalize-5.0.0.min.css">
10<link rel="stylesheet" href="./style.css">
11
12  </head>
13
14  <body>
15  <main>
16  <div class="bottom-controls">
17    <h1>Drag vertically to squeeze</h1>
18
19    <div class="controls-container">
20      <label class="checkbox-label">
21        <input type="checkbox" id="followMouseCheckbox" />
22        <span class="checkmark-icon"></span>
23        Follow mouse
24      </label>
25    </div>
26  </div>
27
28  <div class="canvas-wrapper">
29    <canvas width="1280" height="960"></canvas>
30    <div class="drag-trigger"></div>
31  </div>
32  <div class="loader"><span></span></div>
33</main>
34    <script src='https://unpkg.com/gsap@3/dist/gsap.min.js'></script>
35<script src='https://unpkg.com/gsap@3/dist/Draggable.min.js'></script>
36<script src='https://unpkg.com/gsap@3/dist/InertiaPlugin.min.js'></script>
37<script src='https://cdn.jsdelivr.net/npm/ismobilejs@1/dist/isMobile.min.js'></script><script  src="./script.js"></script>
38
39  </body>
40
41</html>

HTML Breakdown


<canvas> → Renders the jelly animation frames

.drag-trigger → Invisible drag hit-area

.bottom-controls → UI instructions & toggle

.loader → Preload progress feedback

GSAP plugins loaded via CDN



🎨 Step 2: CSS – Layout & Visual Polish


CSS Code


1* {
2  margin: 0;
3  padding: 0;
4  box-sizing: border-box;
5}
6
7html {
8  /* background-color: #111317; */
9  background-color: #b1b3c0;
10  -webkit-user-select: none;
11  -moz-user-select: none;
12  -ms-user-select: none;
13  user-select: none;
14  -webkit-touch-callout: none;
15}
16
17body {
18  -webkit-font-smoothing: antialiased;
19  -moz-osx-font-smoothing: grayscale;
20  min-height: 100%;
21  min-height: 100svh;
22  font-family: system-ui, -apple-system, BlinkMacSystemFont, "Segoe UI", Roboto, Oxygen, Ubuntu, Cantarell, "Open Sans", "Helvetica Neue", sans-serif;
23  overflow: hidden;
24  text-align: center;
25  line-height: 1.8;
26  min-width: 380px;
27}
28
29main {
30  display: flex;
31  flex-direction: column;
32  justify-content: center;
33  align-items: center;
34  min-height: 100%;
35  min-height: 100svh;
36  width: 100%;
37  margin: 0 auto;
38  /* padding: 20px; */
39}
40
41h1 {
42  position: relative;
43  font-size: 17px;
44  font-weight: 450;
45  /* text-transform: uppercase; */
46  /* letter-spacing: 1.6px; */
47  letter-spacing: -0.01em;
48  color: #464e60;
49}
50
51h1 span {
52  display: inline-flex;
53}
54
55.canvas-wrapper {
56  position: relative;
57  width: 100%;
58  max-width: 640px;
59  min-width: 380px;
60  aspect-ratio: 4/3;
61  /* margin-bottom: -2vw */
62  /* margin-bottom: clamp(20px, 5vw, 40px); */
63}
64
65canvas {
66  width: 100%;
67  height: 100%;
68  -webkit-user-select: none;
69  -moz-user-select: none;
70  -ms-user-select: none;
71  user-select: none;
72  z-index: 100;
73  transition: opacity 1.1s ease, transform 1.3s ease;
74  transform: translate3d(0px, 0px, 0px) scale3d(0.92, 0.92, 1) !important;
75  border-radius: clamp(22px, 6vw, 42px);
76  opacity: 0;
77}
78
79.drag-trigger {
80  position: absolute;
81  top: 50%;
82  left: 50%;
83  transform: translate(-50%, -49%);
84  width: 56%;
85  height: 52%;
86  border-radius: 999px;
87  cursor: -webkit-grab;
88  cursor: grab;
89  z-index: 101;
90  /* background-color: rgba(255, 0, 0, 0.3); */
91}
92
93.drag-trigger:active {
94  cursor: -webkit-grabbing;
95  cursor: grabbing;
96}
97
98canvas.fadeIn {
99  opacity: 1;
100  transform: scale3d(1, 1, 1) !important;
101}
102
103.loader {
104  position: absolute;
105  background-color: rgba(255, 255, 255, 0.2);
106  width: 90%;
107  max-width: 150px;
108  height: 2px;
109  left: 50%;
110  top: 50%;
111  transform: translate(-50%, -50%);
112  transition: opacity 500ms ease, visibility 500ms ease;
113}
114
115.loader.hide {
116  opacity: 0 !important;
117  visibility: 0 !important;
118}
119
120.loader span {
121  display: flex;
122  background-color: white;
123  height: 100%;
124  -webkit-animation: loader 1.3s infinite alternate ease-in-out;
125  animation: loader 1.3s infinite alternate ease-in-out;
126  width: 25%;
127}
128
129@-webkit-keyframes loader {
130  0% {
131    opacity: 0;
132    transform: translateX(0%);
133  }
134  50% {
135    opacity: 1;
136  }
137  100% {
138    opacity: 0;
139    transform: translateX(300%);
140  }
141}
142@keyframes loader {
143  0% {
144    opacity: 0;
145    transform: translateX(0%);
146  }
147  50% {
148    opacity: 1;
149  }
150  100% {
151    opacity: 0;
152    transform: translateX(300%);
153  }
154}
155.bottom-controls {
156  position: absolute;
157  bottom: 10px;
158  width: 100%;
159  display: flex;
160  justify-content: center;
161  gap: 14px;
162  z-index: 100;
163  pointer-events: none;
164  opacity: 0;
165  transition: opacity 1.3s ease;
166  transition-delay: 400ms;
167}
168
169.bottom-controls.fadeIn {
170  opacity: 1;
171}
172
173.controls-container {
174  display: flex;
175  align-items: center;
176  pointer-events: auto;
177}
178
179@media (hover: none) and (pointer: coarse) {
180  .controls-container {
181    display: none !important;
182  }
183}
184.checkbox-label {
185  display: flex;
186  align-items: center;
187  gap: 6px;
188  cursor: pointer;
189  font-size: 17px;
190  font-weight: 450;
191  letter-spacing: -0.01em;
192  color: #464e60;
193  -webkit-user-select: none;
194     -moz-user-select: none;
195      -ms-user-select: none;
196          user-select: none;
197}
198
199.checkbox-label input {
200  position: absolute;
201  opacity: 0;
202  cursor: pointer;
203  height: 0;
204  width: 0;
205}
206
207.checkmark-icon {
208  position: relative;
209  height: 16px;
210  width: 16px;
211  border: 1.5px solid #464e60;
212  border-radius: 4px;
213  display: flex;
214  align-items: center;
215  justify-content: center;
216  transition: background-color 0.2s, border-color 0.2s;
217}
218
219.checkmark-icon:after {
220  content: "";
221  position: absolute;
222  display: none;
223  left: 3px;
224  top: 0px;
225  width: 5px;
226  height: 8px;
227  border: solid white;
228  border-width: 0 2px 2px 0;
229  transform: rotate(45deg);
230}
231
232.checkbox-label input:checked ~ .checkmark-icon {
233  background-color: #464e60;
234}
235
236.checkbox-label input:checked ~ .checkmark-icon:after {
237  display: block;
238}
239

CSS Breakdown


Aspect-ratio: 4/3 → Matches animation frames

Rounded corners → Soft, tactile feel

Fade-in animation → Premium loading experience

Hidden overflow → Prevents layout jitter

Pointer control zones → UX-focused interaction



⚙️ Step 3: JavaScript – Canvas, Drag & Physics


Image Sequence Setup


let totalFrames = 215; let startFrame = 70; let images = new Array();

Uses 215 pre-rendered images

Starts from a neutral squish state

Images are loaded dynamically


Preloading System


1
2function preloadImages(callback) {
3  let loaded = 0;
4
5  for (let i = 0; i < totalFrames; i++) {
6    const img = new Image();
7    img.src = `https://www.cerpow.com/jelly/jelly_${i
8      .toString()
9      .padStart(5, "0")}.jpg`;
10    img.onload = () => {
11      if (++loaded === totalFrames) callback();
12    };
13    images[i] = img;
14  }
15}

GSAP Draggable Control


1Draggable.create(canvas, {
2  trigger: ".drag-trigger",
3  type: "y",
4  inertia: true,
5  bounds: { minY: 0, maxY: (totalFrames - 1) / dragSensitivity },
6  onDrag: function () {
7    dragFrame = this.y * dragSensitivity;
8  },
9  onThrowUpdate: function () {
10    dragFrame = this.y * dragSensitivity;
11  }
12});

Physics & Dampening Logic


const dampening = 1.0 - Math.exp(-smoothing * 60 * dt); displayFrame += (dragFrame - displayFrame) * dampening;


Why This Works:

Simulates soft elastic resistance

Prevents jitter

Creates natural jelly motion

Adapts smoothly to fast or slow input


Canvas Rendering Loop


1ctx.drawImage(
2  images[newFrame],
3  0,
4  0,
5  canvas.clientWidth,
6  canvas.clientHeight
7);

Only redraws when frame changes

Optimized for performance

Image smoothing enabled for realism



🖱️ Interaction Modes


Drag Mode

Vertical drag controls squish

Inertia continues motion

Resistance feels physical


Follow Mouse Mode

Frame follows cursor Y-position

Draggable disabled automatically

Great for demos & hero interactions
