🔥 Description

This component produces Tendril Fire Energy, inspired by a Fire Titan aura. It twists, rotates, and animates fractal‑like tendrils using pure WebGL fragment shaders.

🧠 How the Effect Works (Explanation)

1️⃣ Canvas + WebGL Setup

A full‑screen <canvas> is used.
JavaScript initializes WebGL, loads shaders, creates buffers, and renders every frame.

2️⃣ Vertex Shader

Passes full‑screen quad coordinates directly to the fragment shader.
Does not modify shapes — all visuals are in the fragment shader.

3️⃣ Fragment Shader (Main Magic)

Normalizes pixel coordinates.
Rotates them using time‑based rotation matrices.
Computes radial + angular distortions.
Uses a custom color function palette3() to generate flowing, fiery gradients.
Layers 5 tendrils using a loop.
Creates glowing intensity using pow() and sin().

4️⃣ JavaScript Rendering

Sends u_time and u_resolution every frame.
Uses requestAnimationFrame() for smooth animation.

📄 HTML Code

1<!DOCTYPE html>
2<html lang="en">
3  <head>
4    <meta charset="UTF-8" />
5    <title>tendrils</title>
6    <link rel="stylesheet" href="./style.css" />
7  </head>
8  <body>
9    <canvas id="glcanvas"></canvas>
10
11    <script id="vertex-shader" type="x-shader/x-vertex">
12      attribute vec2 a_position;
13      void main() {
14        gl_Position = vec4(a_position, 0.0, 1.0);
15      }
16    </script>
17
18    <script id="fragment-shader" type="x-shader/x-fragment">
19#ifdef GL_ES
20precision highp float;
21#endif
22
23uniform vec2 u_resolution;
24uniform vec2 u_mouse;
25uniform float u_time;
26
27vec3 palette3(float t, float factor) {
28    vec3 a = vec3(0.5) + 0.3 * sin(vec3(0.1, 0.3, 0.5) * factor);
29    vec3 b = vec3(0.5) + 0.3 * cos(vec3(0.2, 0.4, 0.6) * factor);
30    vec3 c = vec3(1.0) + 0.5 * sin(vec3(0.3, 0.7, 0.9) * factor);
31    vec3 d = vec3(0.25, 0.4, 0.55) + 0.2 * cos(vec3(0.5, 0.6, 0.7) * factor);
32    return a + b * cos(6.28318 * (c * t + d));
33}
34
35void main() {
36    vec2 st = (gl_FragCoord.xy / u_resolution.xy) * 2.0 - 1.0;
37    st.x *= u_resolution.x/u_resolution.y;
38    vec3 color = vec3(0.0);
39
40    for (float i = 1.0; i < 6.0; i++) {
41        vec2 st0 = st;
42        float sgn = 1.0 - 2.0 * mod(i, 2.0);
43        float t = u_time * 0.02 - float(i);
44        st0 *= mat2(cos(t), sin(t), -sin(t), cos(t));
45
46        float R = length(st0);
47        float d = R * i;
48        float angle = atan(st0.y, st0.x) * 3.0;
49
50        vec3 pal = palette3(-exp((length(d) * -0.9)), abs(d) * 0.4);
51
52        float radial = exp(-R);
53        radial *= smoothstep(1.2, 0.5, R);
54        pal *= radial;
55
56        float phase = -(d + sgn * angle) + u_time * 0.3;
57        float v = sin(phase);
58        v = max(abs(v), 0.02);
59        float w = pow(0.02 / v, 0.8);
60
61        color += pal * w;
62    }
63
64    gl_FragColor = vec4(color, 1.0);
65}
66    </script>
67
68    <script src="./script.js"></script>
69  </body>
70</html>

🎨 CSS Code

1body {
2  height: 100vh;
3  margin: 0;
4}
5body,
6html {
7  overflow: hidden;
8}

🧠 JavaScript Code

1const canvas = document.getElementById('glcanvas');
2const gl = canvas.getContext('webgl');
3
4canvas.width = window.innerWidth;
5canvas.height = window.innerHeight;
6
7function getShaderSource(id) {
8  return document.getElementById(id).textContent;
9}
10
11const vertexShaderSource = getShaderSource('vertex-shader');
12const fragmentShaderSource = getShaderSource('fragment-shader');
13
14function createShader(gl, type, source) {
15  const shader = gl.createShader(type);
16  gl.shaderSource(shader, source);
17  gl.compileShader(shader);
18  if (!gl.getShaderParameter(shader, gl.COMPILE_STATUS)) {
19    console.error('Shader compile error:', gl.getShaderInfoLog(shader));
20    gl.deleteShader(shader);
21    return null;
22  }
23  return shader;
24}
25
26function createProgram(gl, vertexShader, fragmentShader) {
27  const program = gl.createProgram();
28  gl.attachShader(program, vertexShader);
29  gl.attachShader(program, fragmentShader);
30  gl.linkProgram(program);
31  if (!gl.getProgramParameter(program, gl.LINK_STATUS)) {
32    console.error('Program link error:', gl.getProgramInfoLog(program));
33    return null;
34  }
35  return program;
36}
37
38const vertexShader = createShader(gl, gl.VERTEX_SHADER, vertexShaderSource);
39const fragmentShader = createShader(gl, gl.FRAGMENT_SHADER, fragmentShaderSource);
40const program = createProgram(gl, vertexShader, fragmentShader);
41
42const positionBuffer = gl.createBuffer();
43gl.bindBuffer(gl.ARRAY_BUFFER, positionBuffer);
44const positions = [-1, -1, 1, -1, -1, 1, 1, 1];
45gl.bufferData(gl.ARRAY_BUFFER, new Float32Array(positions), gl.STATIC_DRAW);
46
47const positionLocation = gl.getAttribLocation(program, 'a_position');
48gl.enableVertexAttribArray(positionLocation);
49gl.vertexAttribPointer(positionLocation, 2, gl.FLOAT, false, 0, 0);
50
51gl.useProgram(program);
52
53const resolutionLocation = gl.getUniformLocation(program, 'u_resolution');
54const timeLocation = gl.getUniformLocation(program, 'u_time');
55
56function render(time) {
57  gl.uniform2f(resolutionLocation, canvas.width, canvas.height);
58  gl.uniform1f(timeLocation, time * 0.001);
59
60  gl.clear(gl.COLOR_BUFFER_BIT);
61  gl.drawArrays(gl.TRIANGLE_STRIP, 0, 4);
62  requestAnimationFrame(render);
63}
64
65function resize() {
66  const ratio = Math.min(window.devicePixelRatio || 1, 2);
67  canvas.width = window.innerWidth * ratio;
68  canvas.height = window.innerHeight * ratio;
69  gl.viewport(0, 0, gl.drawingBufferWidth, gl.drawingBufferHeight);
70  canvas.style.width = window.innerWidth + 'px';
71  canvas.style.height = window.innerHeight + 'px';
72}
73
74window.addEventListener('resize', resize);
75resize();
76requestAnimationFrame(render);

✅ Usage

Put all files (index.html, style.css, script.js) in one folder.
Open index.html in a browser.
You will see glowing tendril energy representing Fire Titan Aura.

📌 Notes

This effect is tendril-based, not a full fire titan body.
Uses pure WebGL shaders.
Works best on desktops.

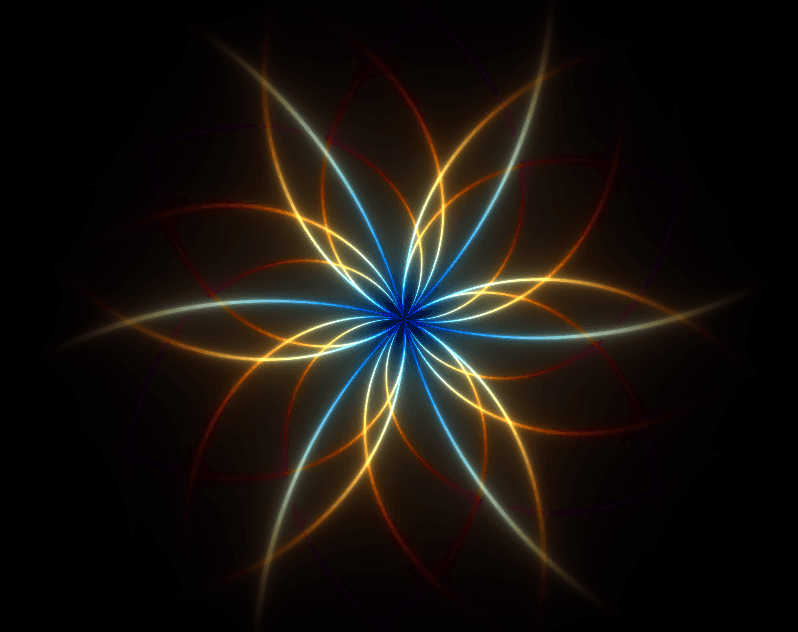

A fully animated WebGL shader effect that renders fiery tendril‑like energy on a full‑screen canvas.
